Accsoon CineView Master 4K Tri-Band Wireless Video Transmission System

Accsoon CineView Master 4K Tri-Band Wireless Video Transmission System

The Accsoon CineView Master 4K is a transmitter and receiver kit for long-range 4K monitoring on set. The transmitter takes HDMI or 3G-SDI from the camera and sends up to 4K60 over HDMI, or 1080p60 over HDMI or 3G-SDI, to the receiver, using H.265 encoding and Accsoon’s proprietary RTMS 4.0 protocol.

Transmission runs across three bands at once, 2.4GHz, 5GHz and the newer 6GHz band, with DFS. Accsoon rates the system at 2.5 km (8202 ft) line of sight with no obstacles or interference, and latency under 25ms at 1080p60 and under 35ms at 4K60, camera latency not included. One transmitter can feed one wired iPhone or iPad over USB plus four wireless devices, mixing CineView Master 4K receivers and phones or tablets running the Accsoon SEE app.

Both units run from NP-F batteries or 7.4 to 16.8V DC, with V-Mount power through an optional adapter, and use fan cooling with standard, quiet and fan-off modes for sound-critical takes. Contact CINEOM Broadcast FZCO for a quote or technical advice on building a wireless monitoring setup around the CineView Master 4K.

Included in the Box

• CineView Master 4K Transmitter x1
• CineView Master 4K Receiver x1
• 2.4GHz/5GHz Antennas x8
• 6GHz Antennas x4
• Cold Shoe Adapters x2
• USB-C to USB-C Cable x1
• USB-C to Lightning Cable x1
• L-Shaped Wrench x1
• User Manual x1

Key Features

• End-to-end 4K60: HDMI input up to 3840×2160 at 60p, HDMI output up to 4K60 on the receiver
• 3G-SDI input on the transmitter and 3G-SDI output on the receiver, 1080p up to 60fps
• Tri-Band 2.4GHz + 5GHz + 6GHz transmission with DFS on Accsoon’s RTMS 4.0 protocol
• Rated range of 2.5 km (8202 ft) line of sight with no obstacles or interference
• Latency under 25ms at 1080p60 and under 35ms at 4K60, camera latency not included
• 1 wired iOS device plus 4 wireless receivers or Accsoon SEE app devices
• HDMI loop-out on the transmitter and USB video out to iPhone or iPad
• Fan cooling with standard, quiet and off modes; NP-F, 7.4 to 16.8V DC and V-Mount power options

Best Suitable For / Use Cases

• Film and episodic production where the director, focus puller and video village need a 4K feed
• Broadcast and live events covering long distances between camera and monitoring position
• Multi-camera shoots that need several clients watching one camera feed
• Productions sharing proxies to the cloud through Frame.io Camera to Cloud on a connected iOS device

Paired With

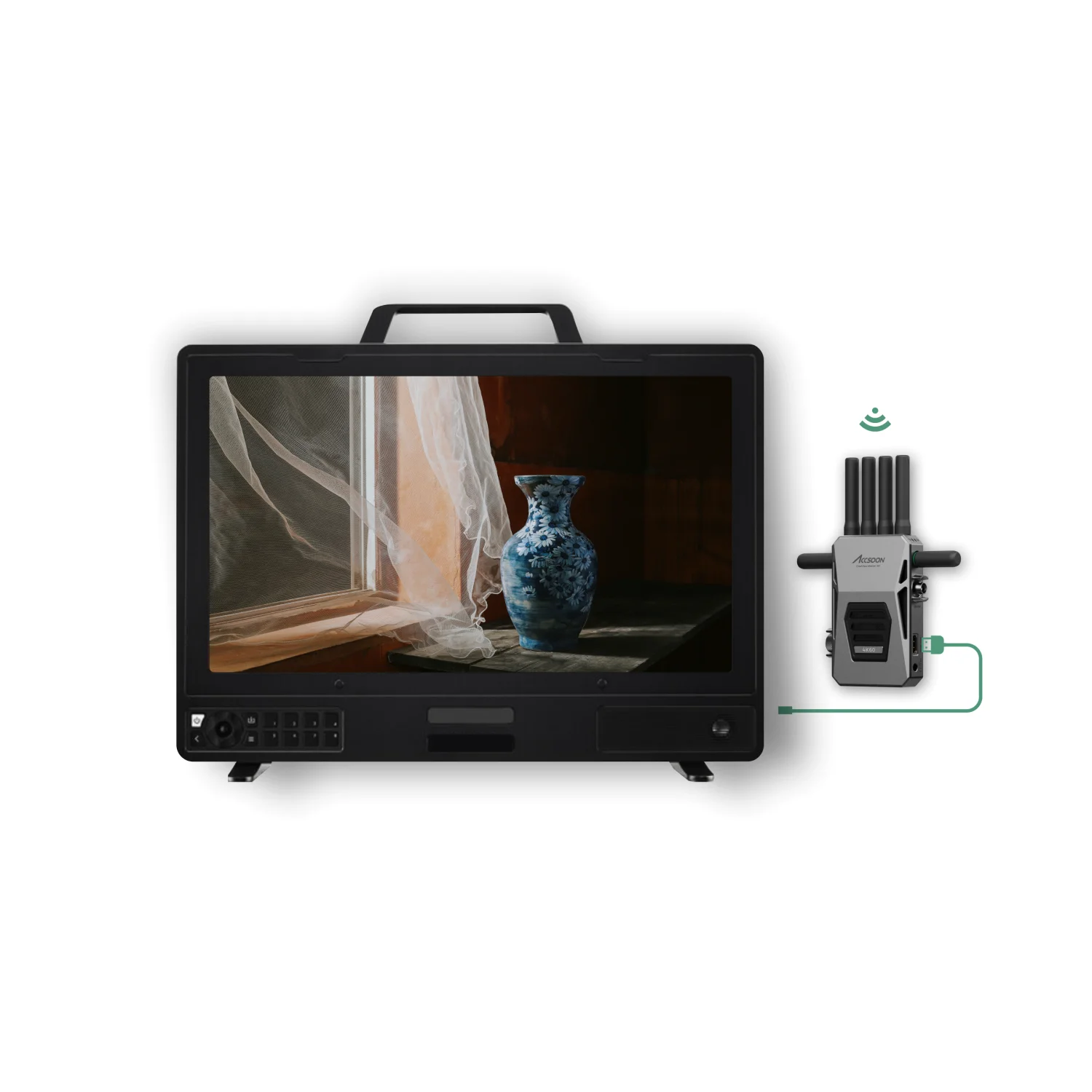

• Accsoon CineView M7 Pro monitor in TX or RX mode
• Additional CineView Master 4K receivers
• iPhone or iPad running the Accsoon SEE app
• NP-F550, NP-F750 or NP-F970 batteries
• Accsoon V-Lock adapter for V-Mount power

FAQs

What is the range and latency of the CineView Master 4K?

Accsoon rates it at 2.5 km (8202 ft) line of sight with no obstacles or interference. Latency is under 25ms at 1080p60 and under 35ms at 4K60, not counting camera latency.

Can I send 4K over SDI?

No. 4K up to 60p is carried over HDMI. The SDI input and output handle 1080p up to 60fps and 1080i.

How many people can monitor at the same time?

One transmitter supports one wired iPhone or iPad plus four wireless connections, which can be any mix of CineView Master 4K receivers and devices running the Accsoon SEE app.

How is it powered?

Each unit accepts NP-F550, NP-F750 or NP-F970 batteries, or 7.4 to 16.8V DC through a 5.5×2.1mm barrel. V-Mount batteries can be used with the separately sold Accsoon V-Lock adapter.

Where can I buy the Accsoon CineView Master 4K?

The CineView Master 4K is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact us for pricing and lead times.
