Accsoon CineView 2 SDI 1080p Wireless Video Transmission System

Accsoon CineView 2 SDI 1080p Wireless Video Transmission System

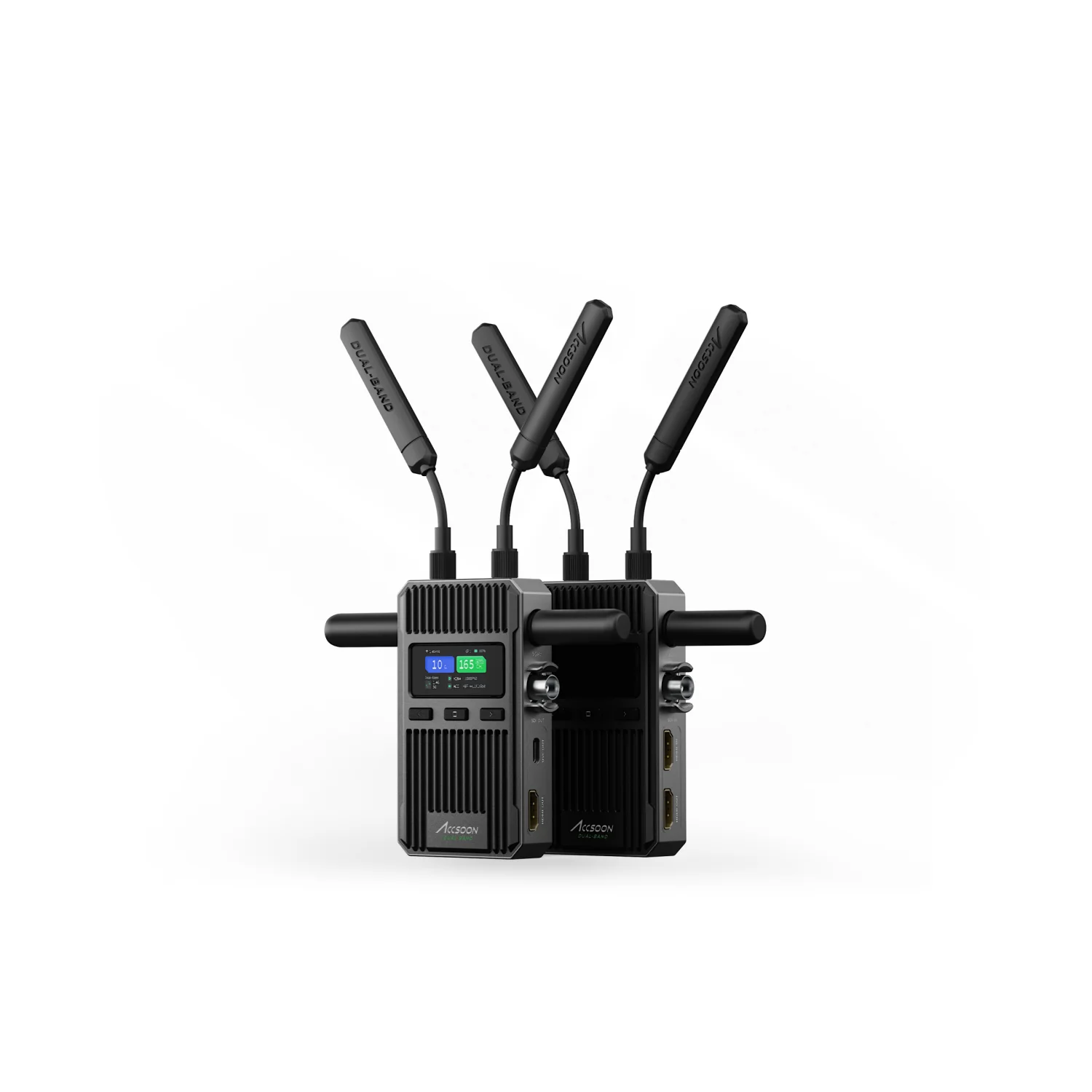

The Accsoon CineView 2 SDI is a 1080p wireless video transmitter and receiver built on Accsoon’s patented 2.4GHz + 5GHz Dual-Band technology with a new antenna design. It sends 1080p60 video and audio up to 450m (1500 ft) line of sight with latency under 50ms, camera latency not included.

The transmitter takes 3G-SDI or HDMI, including 4K HDMI sources, and passes HDMI through on a loop-out. The receiver outputs 3G-SDI, HDMI and UVC over USB for live streaming. Each transmitter can feed up to four devices in any mix of CineView receivers and iOS or Android devices, and the units work with CineView SE, HE and Quad. There is no fan, so the units stay silent on set.

Each unit weighs 210g without antennas, has a 1.47 inch colour LCD, and runs from NP-F batteries, 7.4 to 16.8V DC or 5V USB-C. Contact CINEOM Broadcast FZCO for a quote or technical advice on the CineView 2 SDI.

Key Features

• Dual-Band 2.4GHz + 5GHz transmission with a new antenna design
• 450m (1500 ft) rated range with no obstacles or interference, latency under 50ms
• Transmitter inputs: 3G-SDI and HDMI (accepts 4096×2160 and 3840×2160 up to 60p), HDMI loop-out
• Receiver outputs: 3G-SDI, HDMI and UVC for live streaming, 1080p up to 60p
• Up to 4 monitoring devices, any mix of CineView receivers and iOS or Android devices
• Backward compatible with CineView SE, HE and Quad
• Fanless design, 1.47 inch full-colour LCD, 210g per unit without antennas
• Power from NP-F batteries, 7.4 to 16.8V DC or USB-C 5V/2A

Best Suitable For / Use Cases

• Wireless director and client monitoring on SDI-based camera packages
• Sound-sensitive interviews and drama where fan noise is not acceptable
• Live streaming with the receiver connected to a computer over UVC
• Crews adding units to an existing CineView SE, HE or Quad setup

Paired With

• Accsoon CineView SE, HE or Quad units
• Accsoon CineView M7 Pro monitor
• iOS or Android device running the Accsoon SEE app
• NP-F550, NP-F750 or NP-F970 batteries

FAQs

Does the CineView 2 SDI transmit 4K?

No. The transmitter accepts 4K HDMI signals, but transmission and receiver output are 1080p up to 60p.

What is the range and latency?

Accsoon rates the CineView 2 SDI at 1500 ft (450m) line of sight with no obstacles or interference, and latency under 50ms not counting camera latency.

Can I stream from the receiver?

Yes. The receiver offers UVC output alongside 3G-SDI and HDMI, so it can feed a computer for live streaming.

Does it work with my existing CineView units?

Yes. The CineView 2 is backward compatible with CineView SE, HE and Quad, and units can be mixed as needed.

Where can I buy the Accsoon CineView 2 SDI?

The CineView 2 SDI is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact us for pricing and lead times.
