Accsoon CineView M7 Pro 7″ All-in-One TX/RX Wireless Monitor

Accsoon CineView M7 Pro 7″ All-in-One TX/RX Wireless Monitor

The Accsoon CineView M7 Pro combines a 7-inch monitor, a wireless video transmitter and a wireless receiver in one body. In Monitor mode it takes a camera feed over HDMI or 3G-SDI. In TX mode it sends video to up to four compatible receivers or mobile devices, and in RX mode it receives from compatible CineView transmitters. Wireless video uses simultaneous 2.4 GHz and 5 GHz transmission, with a range of up to 1200 ft in clear line of sight and latency as low as 60 ms.

The fully laminated 1920 x 1080 display reaches 1000 nits with a 1000:1 contrast ratio and a 176 degree viewing angle. Each unit is factory calibrated to Rec.709 with Delta E below 2 and Gamma 2.4. LUT support covers 4096-point 1D LUTs and 127-point 3D LUTs, applied live for monitoring or burned in for HDMI/SDI output, recording and streaming. Monitoring tools include Focus Peaking, Waveform, False Color, vertical anamorphic display, blanking and zoom. HDMI handles up to 4K60 and SDI up to 1080p60, with bidirectional SDI/HDMI cross-conversion and 4K to 1080p downconversion.

The monitor runs an Android-based system and can record up to 4K60 in H.264 or H.265 to an SD card, USB drive or SSD, and stream over SRT or RTMP through Wi-Fi or a USB-to-RJ45 connection. USB-C and wireless IP camera control is supported on compatible Sony, Canon and Nikon cameras. Power options are NP-F550/750/970 batteries, 6V to 16.8V DC, or USB-C PD at 9V, 12V or 15V 3A. Contact CINEOM Broadcast FZCO for a quote or technical advice.

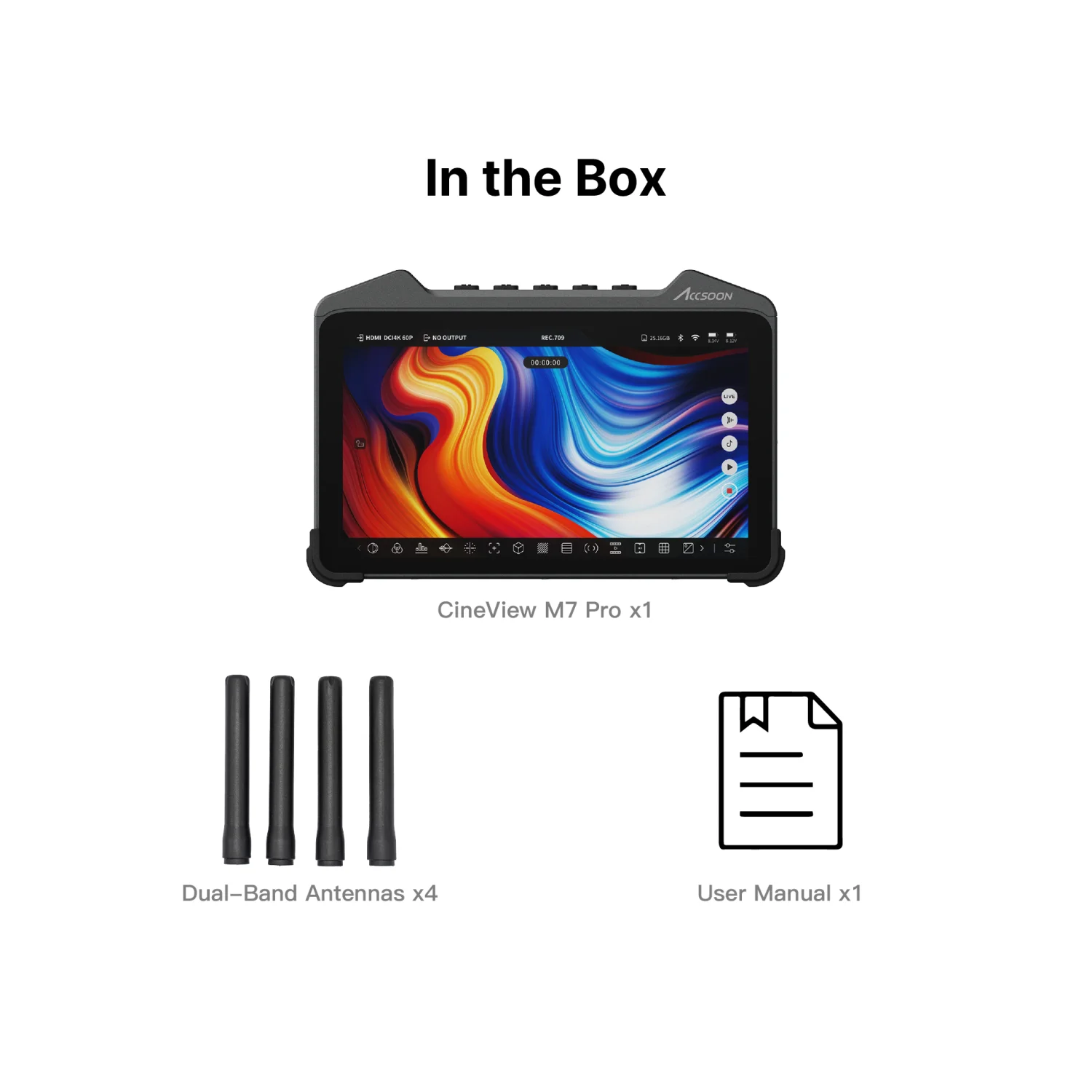

Included in the Box

• Accsoon CineView M7 Pro x1
• Dual-Band Antennas x4
• User Manual x1

Key Features

• Three modes in one unit: Monitor, wireless transmitter (TX) and wireless receiver (RX)
• 7-inch 1920 x 1080 fully laminated display, 1000 nits, 1000:1 contrast
• Factory Rec.709 calibration, Delta E below 2, Gamma 2.4
• 4096-point 1D LUT and 127-point 3D LUT support with LUT burn-in
• Dual-band 2.4/5 GHz transmission up to 1200 ft, latency as low as 60 ms
• HDMI up to 4K60, 3G-SDI up to 1080p60, bidirectional cross-conversion
• 4K60 H.264/H.265 recording to SD, USB drive or SSD, plus SRT and RTMP streaming
• USB-C and wireless IP camera control for compatible Sony, Canon and Nikon cameras

Best Suitable For / Use Cases

• Single-operator shoots that need on-camera monitoring and a wireless feed to a director
• Video village or client monitoring in RX mode from CineView transmitters
• Live streaming direct from the camera position without a computer
• Backup or proxy recording alongside in-camera media
• Small broadcast and event crews building a compact wireless video chain

Paired With

• Accsoon CineView transmitters and receivers
• A second CineView M7 Pro in RX mode
• NP-F550/750/970 batteries or an NP-F to V-mount adapter plate
• Sony FX3, FX30 and Alpha cameras, Canon EOS R and Cinema EOS cameras
• Accsoon CoMo II wireless intercom

FAQs

Can the CineView M7 Pro work as both transmitter and receiver?

Yes. It switches between Monitor, TX and RX modes. In TX mode it can send to up to four compatible receivers or mobile devices, and in RX mode it receives from compatible CineView transmitters.

What is the wireless range?

Accsoon specifies up to 1200 ft with latency as low as 60 ms, tested in clear, unobstructed conditions. Range on set depends on the wireless environment.

Can it record and stream?

Yes. It records up to 4K60 in H.264 or H.265 to an SD card, USB drive or SSD, and streams over SRT or RTMP through Wi-Fi or a wired USB-to-RJ45 connection.

How is it powered?

With NP-F550, NP-F750 or NP-F970 batteries, 6V to 16.8V DC input, or a USB-C PD adapter at 9V/3A, 12V/3A or 15V/3A. An optional NP-F to V-mount plate is also available.

Where can I buy the Accsoon CineView M7 Pro?

It is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact the team for pricing, lead times and technical advice.
