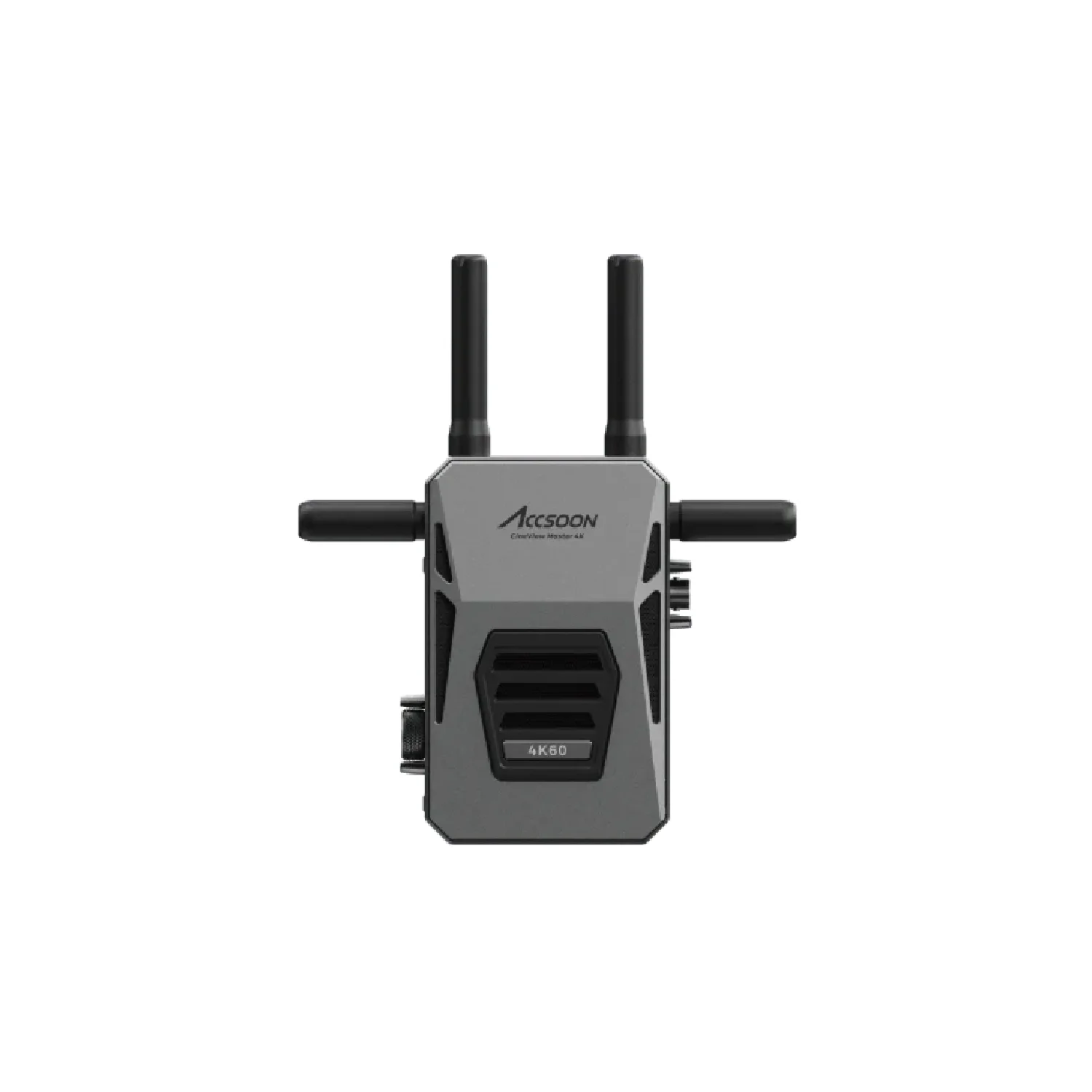

Accsoon CineView Master 4K Lite Dual-Band Wireless Video System

Accsoon CineView Master 4K Lite Dual-Band Wireless Video System

The Accsoon CineView Master 4K Lite is a transmitter and receiver kit that carries 4K60 video, up to DCI 4K, from camera to monitor over Accsoon’s Dual-Band 2.4GHz and 5GHz link with DFS. It uses the RTMS 4.0 protocol and supports H.265 encoding, with HDMI 2.0 and 3G-SDI on both ends and an HDMI loop-out on the transmitter.

The Lite adds USB-C camera control. With a single USB-C cable between camera and transmitter, ISO, aperture, white balance and shutter speed can be adjusted from the monitoring device, along with record trigger and touch focus. Accsoon lists support for the Sony FX3, FX30, A7C II, A7S III, A7 IV and A9 III and the Canon R5, R6, R5 II, R6 II, R7 and R8, with control running over the Wi-Fi link to the transmitter.

Range is rated at 350m (1200 ft) line of sight, with latency under 35ms at 1080p60 and under 65ms at 4K60, camera latency not included. Up to 10 transmitter and receiver groups can work in close range, and each transmitter feeds one wired plus four wireless devices. Contact CINEOM Broadcast FZCO for a quote or technical advice on the CineView Master 4K Lite.

Key Features

• HDMI 2.0 input and output up to DCI 4K and UHD at 60p, HDMI loop-out on the transmitter
• 3G-SDI input on the transmitter and 3G-SDI output on the receiver, 1080p up to 60fps
• Dual-Band 2.4GHz + 5GHz transmission with DFS on Accsoon’s RTMS 4.0 protocol, H.265 support
• 350m (1200 ft) rated range; under 35ms at 1080p60 and under 65ms at 4K60
• USB-C camera control: ISO, aperture, white balance, shutter, record trigger and touch focus
• USB wired video to iOS or Android devices on both transmitter and receiver, up to 32Mbps
• 1 wired plus 4 wireless connections; up to 10 groups operating in close range
• NP-F battery, 7.4 to 16.8V DC and V-Mount power options with fan cooling

Best Suitable For / Use Cases

• Owner-operators and small crews monitoring and controlling a Sony or Canon camera from a phone or tablet
• Short-form, commercial and mini drama productions needing a 4K60 monitoring feed
• Live streaming rigs that take a wired feed into a mobile device
• Sets running several wireless kits side by side, up to 10 groups

Paired With

• Accsoon CineView M7(H) Pro monitor in RX or TX mode
• CineView Master 4K transmitters and receivers
• iOS or Android device running the Accsoon SEE app
• NP-F550, NP-F750 or NP-F970 batteries
• Accsoon V-Lock adapter for V-Mount power

FAQs

How does the Master 4K Lite differ from the CineView Master 4K?

The Lite uses Dual-Band 2.4GHz + 5GHz with a rated 350m range, while the Master 4K adds 6GHz for Tri-Band transmission and a rated 2.5 km range. The Lite adds USB-C camera control and USB video out on both the transmitter and the receiver.

Which cameras support USB-C camera control?

Accsoon lists the Sony FX3, FX30, A7C II, A7S III, A7 IV and A9 III, and the Canon R5, R6, R5 II, R6 II, R7 and R8. Camera control works over the Wi-Fi link to the transmitter, not through the receiver USB connection.

Is it compatible with other CineView units?

Yes. The transmitter works with CineView M7(H) Pro in RX mode and CineView Master 4K receivers, and the receiver works with CineView M7(H) Pro in TX mode and CineView Master 4K transmitters.

What latency should I expect?

Under 35ms at 1080p60 and under 65ms at 4K60, for both transmitter to receiver and transmitter to mobile device, not counting camera latency.

Where can I buy the Accsoon CineView Master 4K Lite?

The CineView Master 4K Lite is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact us for pricing and lead times.
