TVLogic FX-7 7″ High Brightness Field Monitor

TVLogic FX-7 7″ High Brightness Field Monitor

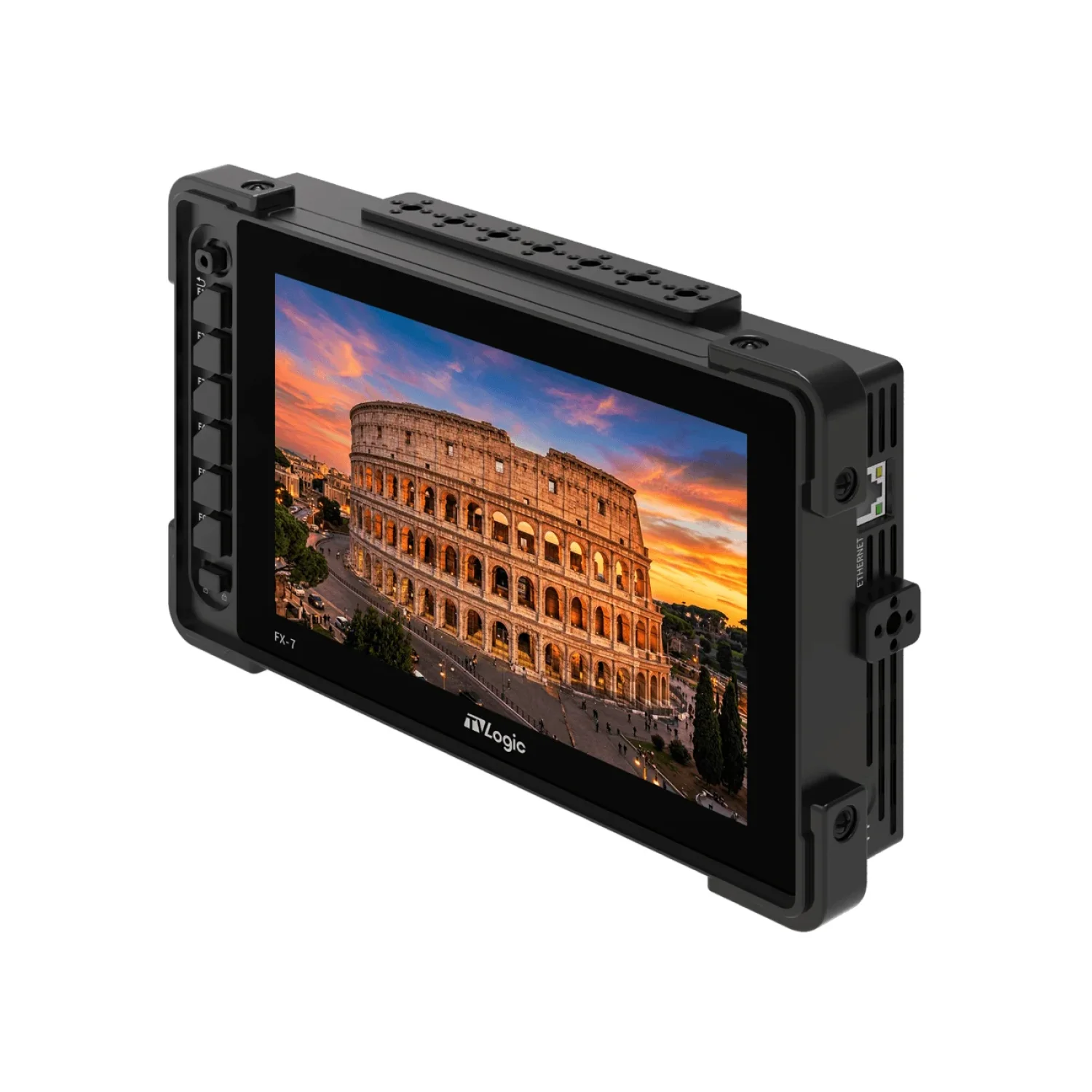

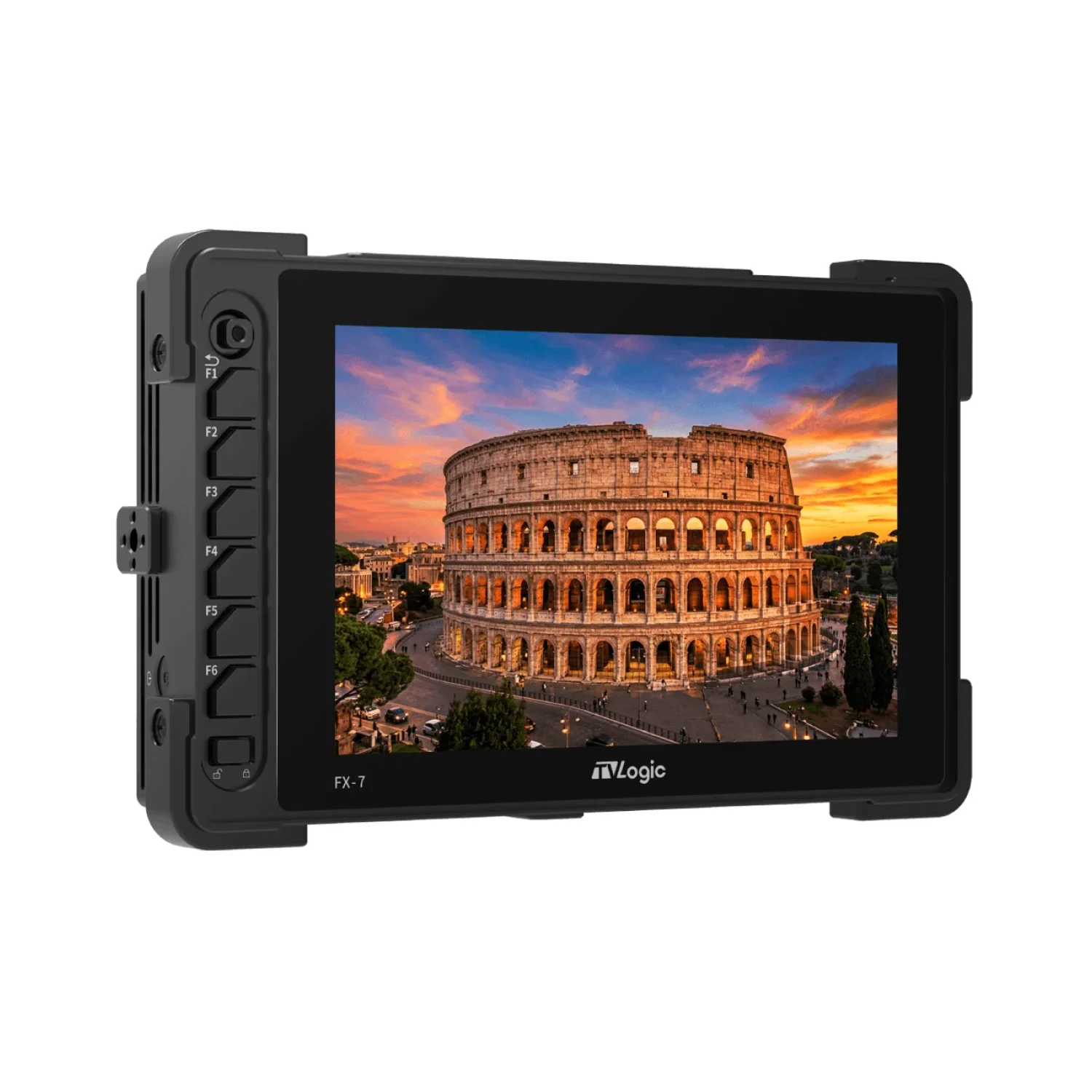

The TVLogic FX-7 is a 7 inch field monitor with a 1920 x 1200 panel rated at 2000 cd/m2 and 1.073 billion colors. It is aimed at camera operators, focus pullers and directors who need a bright, accurate picture outdoors, with full touch screen control and six function and preset buttons for the tools used most often.

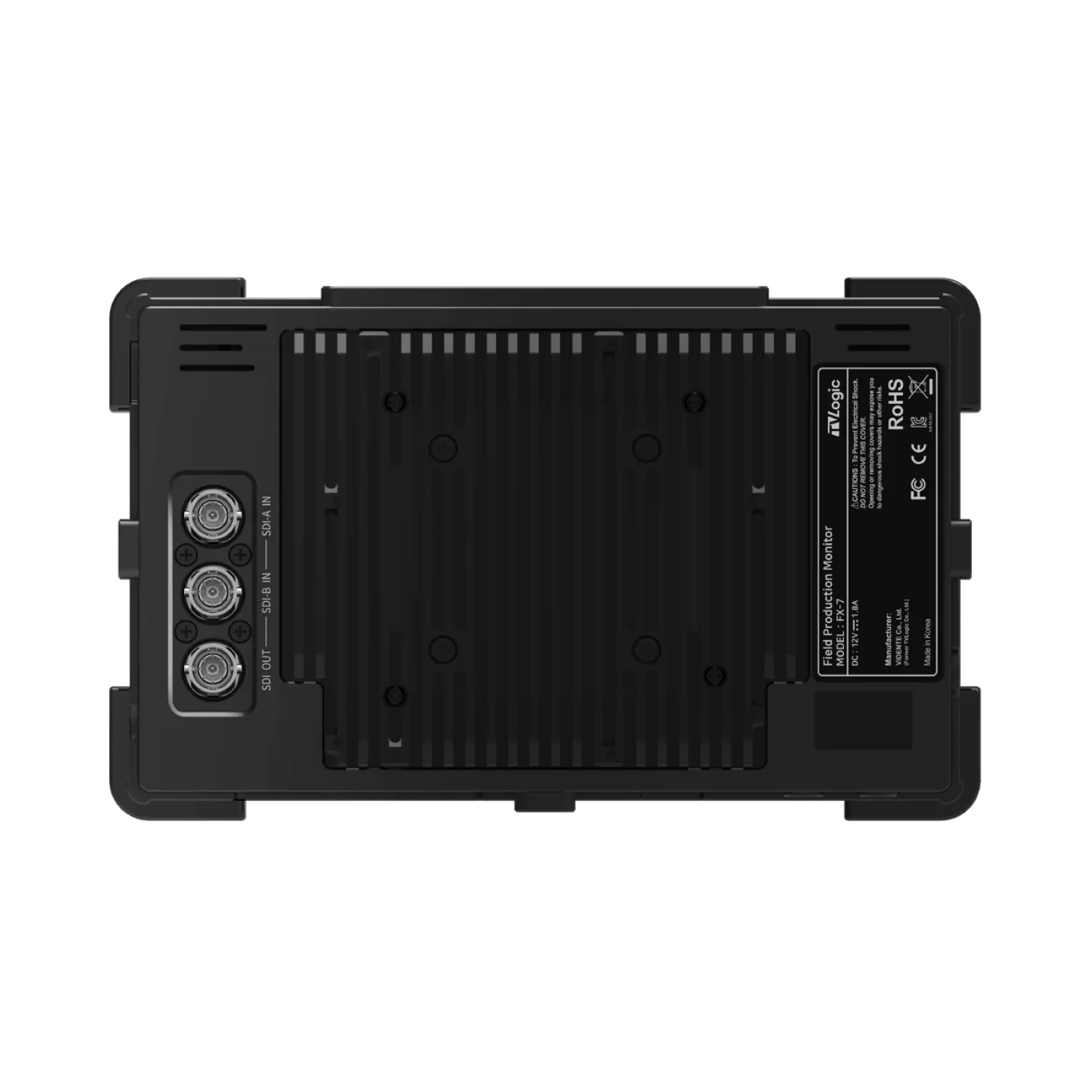

Two 12G/6G/3G/HD-SDI inputs let the FX-7 switch between two cameras or compare two sources in picture-by-picture. The SDI output is A/B selectable and can carry the LUT-applied image or an HDMI-to-SDI conversion, and the HDMI input accepts up to 4096 x 2160 60p with an HDMI output alongside. Power is through a LEMO 2-pin 12V DC input or USB-C PD (45W minimum), with a LEMO passthru output for another device. The body weighs 0.82 kg.

Monitoring tools include waveform, vectorscope, false color, focus assist, audio level meter, markers and timecode, with HDR monitoring in PQ and HLG, custom 3D LUT import, custom anamorphic desqueeze, image capture and overlay, and portrait mode for vertical content. Contact CINEOM Broadcast FZCO for a quote or technical advice on configuring the FX-7 for your production.

Included in the Box

• D-Tap to LEMO power cable

Key Features

• 2000 cd/m2 7″ 1920 x 1200 (16:10) LCD with 1.073 billion colors
• Complete touch screen control with 6 function and preset buttons
• 2 x 12G/6G/3G/HD-SDI inputs and HDMI input up to 4096 x 2160 60p
• SDI A/B selectable output with LUT-applied or HDMI-to-SDI conversion, plus HDMI output
• LEMO 2-pin 12V DC input, LEMO DC passthru output and USB-C PD input (min. 45W)
• HDR EOTF (PQ, HLG) and custom 3D LUT import
• Waveform, vectorscope, false color, focus assist, audio level meter, marker, timecode, H/V flip and scan
• Picture-by-picture, image capture and overlay, portrait and landscape modes, custom anamorphic desqueeze

Best Suitable For / Use Cases

• Director and focus puller monitoring on cinema shoots in daylight
• Two-camera setups that need switching or side-by-side comparison
• Feeding SDI wireless transmitters from HDMI cameras
• Live production and ENG crews working outdoors
• Vertical video and social content production

Paired With

• TVLogic V-Mount Battery Bracket
• TVLogic Anton-Bauer (Gold) Battery Bracket
• TVLogic Sun Hood (optional accessory)
• TVLogic AC-DC Adapter (optional accessory)
• TVLogic Carrying Case

FAQs

What resolution is the FX-7 screen?

The 7 inch panel is 1920 x 1200 (16:10) with 1.073 billion colors and a 2000 cd/m2 white luminance.

How many SDI inputs does the FX-7 have?

Two 12G/6G/3G/HD-SDI inputs, plus one SDI output that is A/B selectable and can carry the LUT-applied image or an HDMI-to-SDI conversion.

What is the difference between the FX-7 and the FX-5?

The FX-7 has a larger 7 inch 1920 x 1200 panel, two SDI inputs instead of one, and six function buttons instead of four. Both share the 2000 cd/m2 brightness, touch control, HDR and 3D LUT tools.

How is the FX-7 powered?

Through a LEMO 2-pin 12V DC input, supplied with a D-Tap to LEMO cable, or USB-C Power Delivery at 45W minimum, with a LEMO DC passthru output.

Where can I buy the TVLogic FX-7?

The TVLogic FX-7 is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact the team for pricing and lead times.
