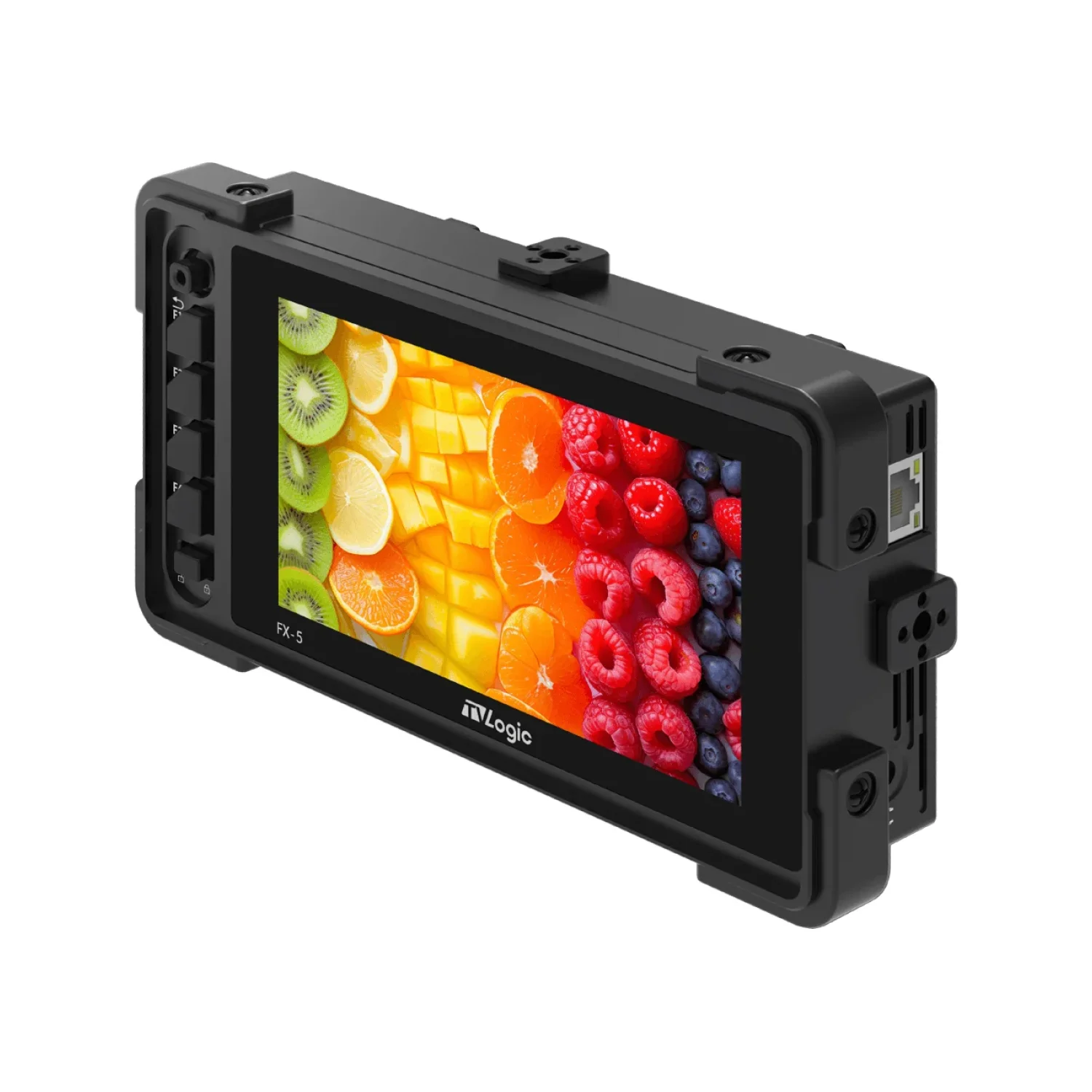

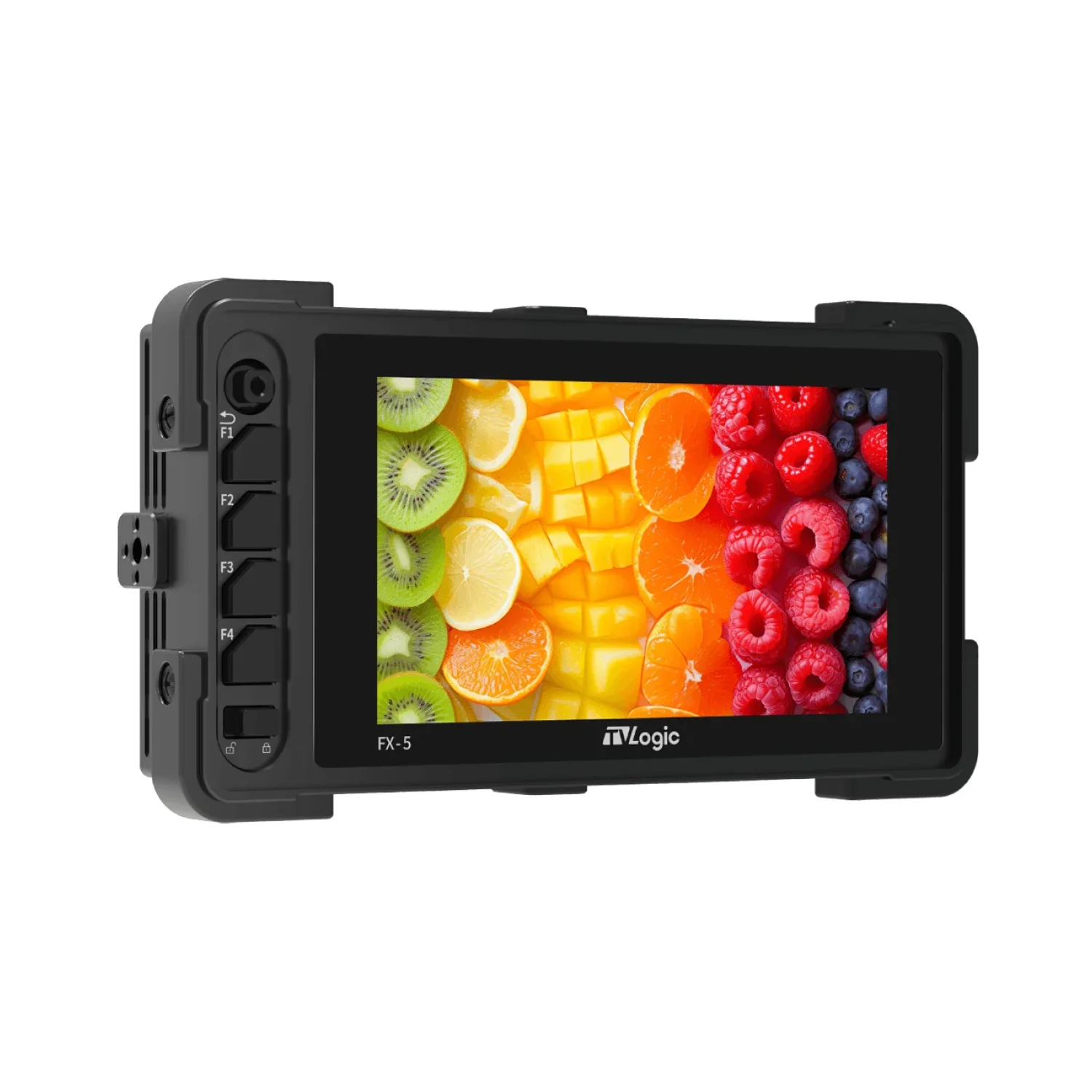

The TVLogic FX-5 is a 5.5 inch on-camera monitor built around a 1920 x 1080 panel rated at 2000 cd/m2, so the picture stays readable in direct sun without a hood. Operation is by full touch screen plus four function and preset buttons, and the whole unit weighs 0.66 kg, which keeps it practical on a gimbal, a handheld rig or a lightweight cine camera.

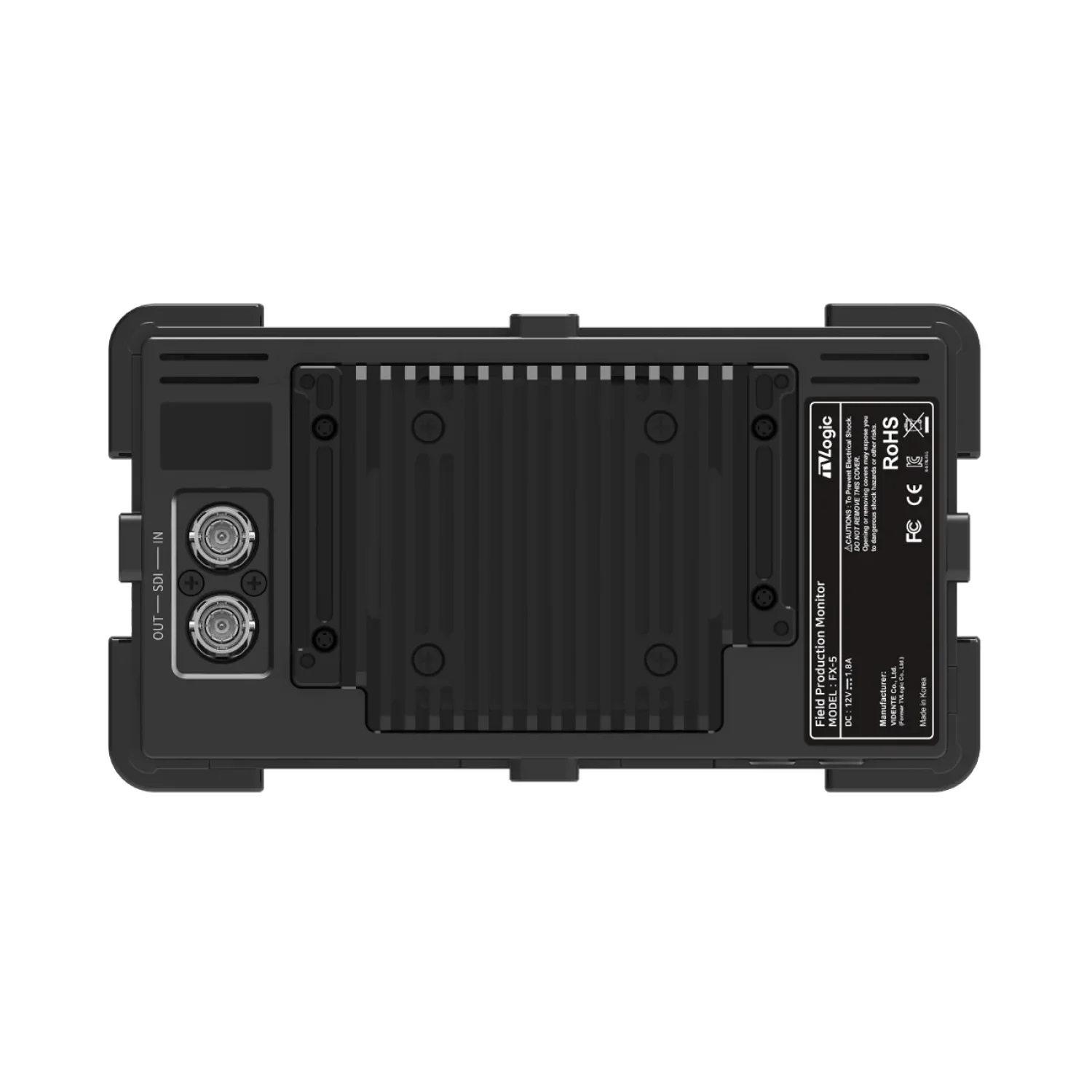

Connectivity is broadcast grade for a monitor this size. One 12G/6G/3G/HD-SDI input and one SDI output handle UHD signals up to 3840 x 2160 60p, and the SDI output can carry the LUT-applied image or an HDMI-to-SDI conversion, so an HDMI camera can feed an SDI video village or transmitter. An HDMI input accepts up to 4096 x 2160 60p, with an HDMI output alongside. Power comes in through a LEMO 2-pin 12V DC connector or USB-C PD (45W minimum), and a LEMO passthru output can power a second device.

For exposure and focus the FX-5 carries waveform, vectorscope, false color, focus assist, audio level meters, markers and timecode, plus HDR monitoring in PQ and HLG, custom 3D LUT import, custom anamorphic desqueeze, image capture and overlay for shot matching, picture-by-picture and portrait mode for vertical content. Contact CINEOM Broadcast FZCO for a quote or technical advice on fitting the FX-5 into your camera package.

Included in the Box

• D-Tap to LEMO power cable

Key Features

• 2000 cd/m2 5.5″ Full HD (1920 x 1080) LCD with 170 degree viewing angle
• Complete touch screen control with 4 function and preset buttons
• 12G/6G/3G/HD-SDI input and output, SDI output carries LUT-applied or HDMI-to-SDI converted signal
• HDMI input up to 4096 x 2160 60p and HDMI output
• LEMO 2-pin 12V DC input, LEMO DC passthru output and USB-C PD input (min. 45W)
• HDR EOTF (PQ, HLG) and custom 3D LUT import
• Waveform, vectorscope, false color, focus assist, audio level meter, marker, timecode, H/V flip and scan
• Image capture and overlay, picture-by-picture, portrait and landscape modes, custom anamorphic desqueeze

Best Suitable For / Use Cases

• Focus pulling and framing on cinema and broadcast cameras in bright exterior light
• Gimbal, handheld and Steadicam rigs where size and weight matter
• Converting a camera’s HDMI output to SDI for wireless video or a video village
• Vertical video production for social platforms using portrait mode
• Anamorphic shoots that need a desqueezed on-set image

Paired With

• TVLogic DV Battery Bracket (optional accessory)
• TVLogic Sun Hood (optional accessory)
• TVLogic AC-DC Adapter (optional accessory)
• TVLogic Carrying Case (optional accessory)
• Cinema and broadcast cameras with 12G-SDI or HDMI output

FAQs

Can the FX-5 display a 4K signal?

Yes. The SDI input accepts 12G-SDI up to 3840 x 2160 60p and the HDMI input accepts up to 4096 x 2160 60p. The panel itself is 1920 x 1080, so 4K sources are shown scaled to the Full HD screen.

Can the FX-5 convert HDMI to SDI?

Yes. The SDI output can carry an HDMI-to-SDI converted signal, or the LUT-applied image, which lets an HDMI camera feed SDI equipment downstream.

How is the FX-5 powered?

Through a LEMO 2-pin 12V DC input, supplied with a D-Tap to LEMO cable, or through USB-C Power Delivery rated at 45W minimum. A LEMO DC passthru output can power another accessory.

How much does the FX-5 weigh?

The main body weighs 0.66 kg (1.45 lbs) and measures 187.5 x 105 x 46.75 mm.

Where can I buy the TVLogic FX-5?

The TVLogic FX-5 is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact the team for pricing and lead times.
