TVLogic SVM-183P 18.5″ 12G-SDI High Brightness Field Monitor

TVLogic SVM-183P 18.5″ 12G-SDI High Brightness Field Monitor

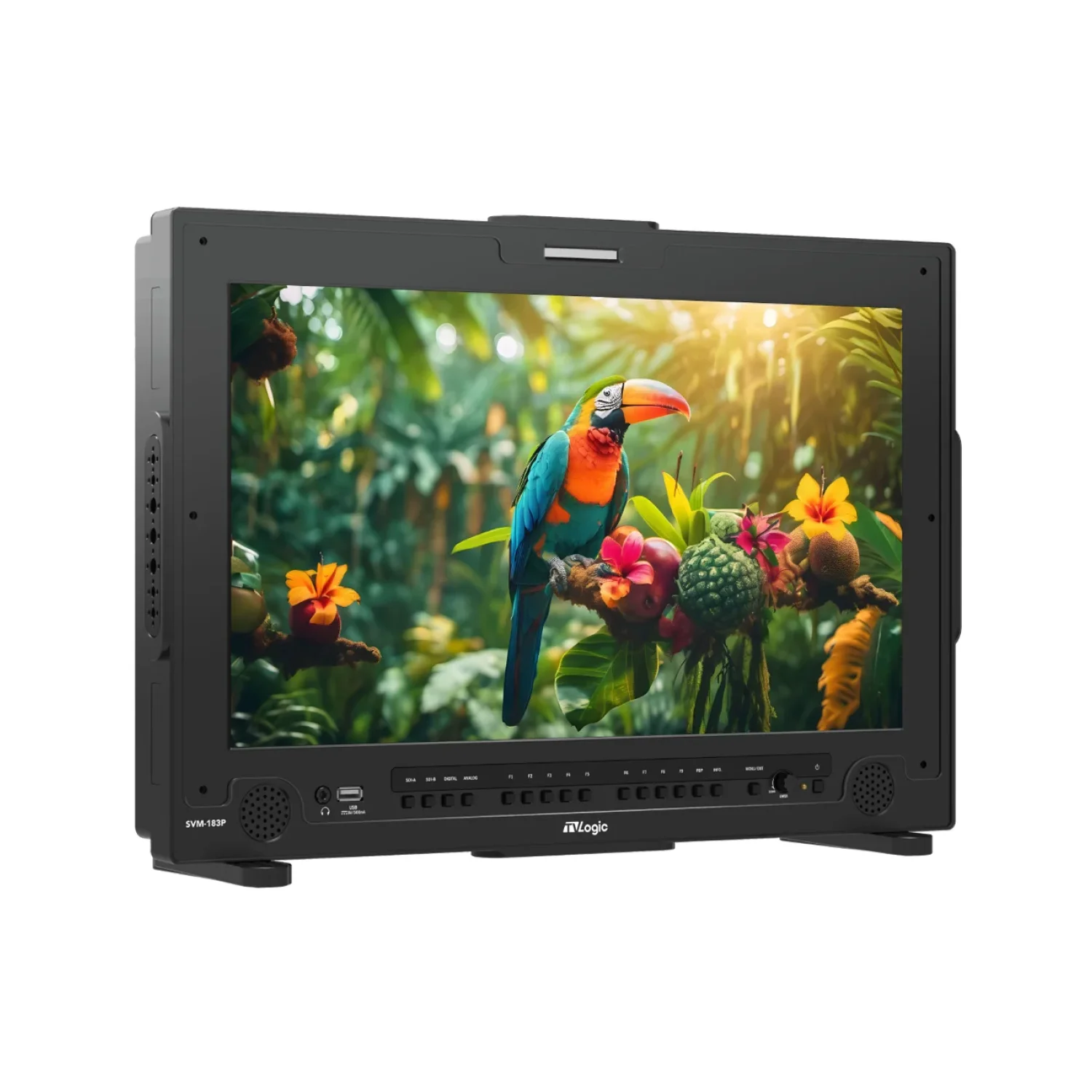

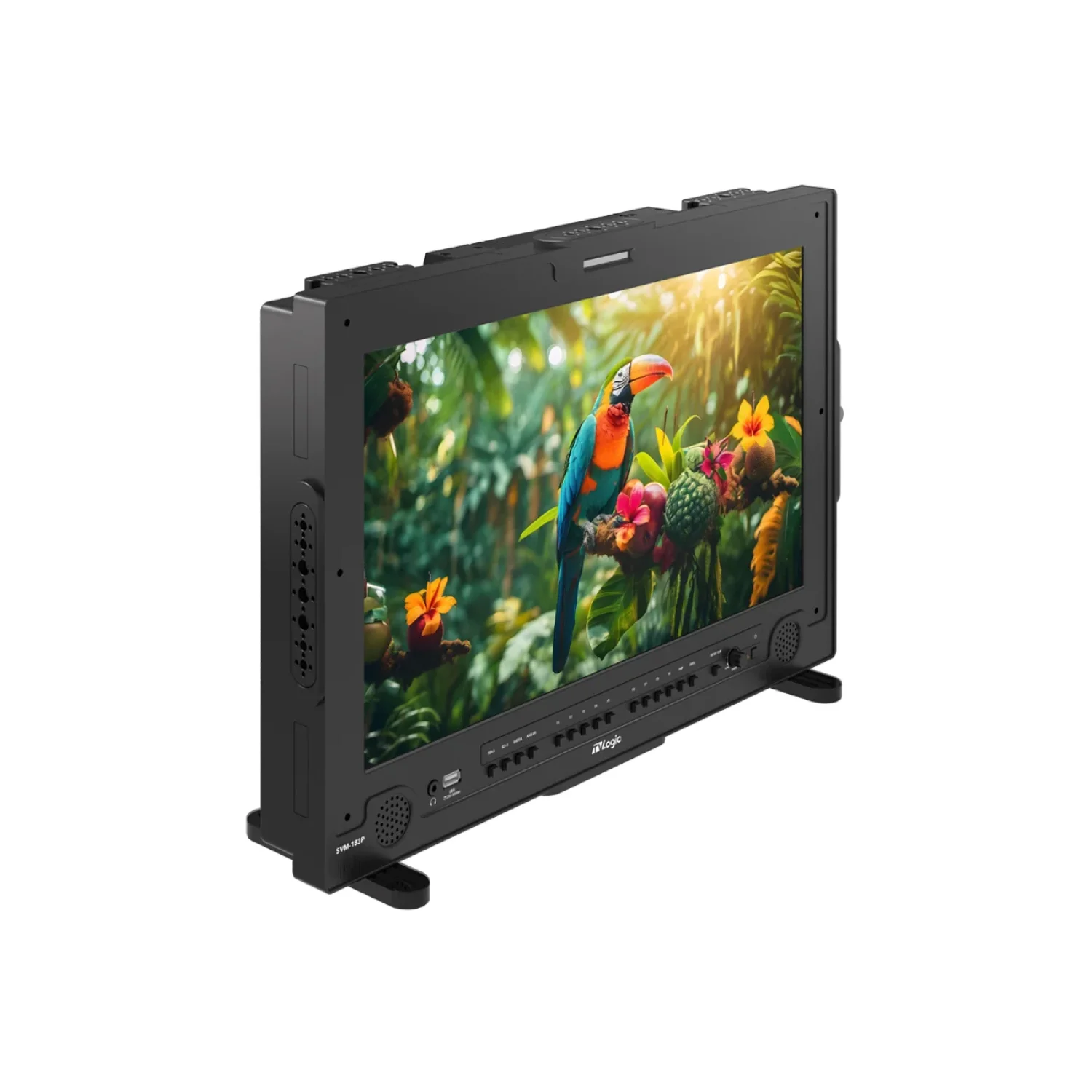

The TVLogic SVM-183P is an 18.5 inch 12G-SDI field monitor with a 1920 x 1080 panel rated at 1500 cd/m2 and a 178 degree viewing angle. It is sized for the director, client or DIT position on location, where a larger picture has to stay readable in daylight, and it runs on DC 12V/24V, with dual battery brackets for cable-free operation.

Inputs cover two 12G/6G/3G/HD/SD-SDI channels (A/B) with loop outputs, HDMI 1.4, YPbPr and CVBS, and a reference input. A 12G-SDI input can be downscaled to a 3G-SDI output, and a processed output passes on the monitored image. Control runs over LAN (firmware update and remote control), GPI and two RS-422 ports using the TVLogic or TSL protocol, and the SDI payload ID is detected automatically.

The monitoring toolset includes HDR display in PQ, HLG and S-LOG3, custom 3D LUT import by USB flash drive, waveform (YCbCr, RGB), vectorscope, histogram, audio level and phase meters, focus assist, markers, blue and mono only, timecode, picture-by-picture, image capture and overlay, and H/V flip. Cheese plates and a C-stand mount make rigging straightforward. Contact CINEOM Broadcast FZCO for a quote or technical advice on the SVM-183P.

Included in the Box

• Stand
• Handle

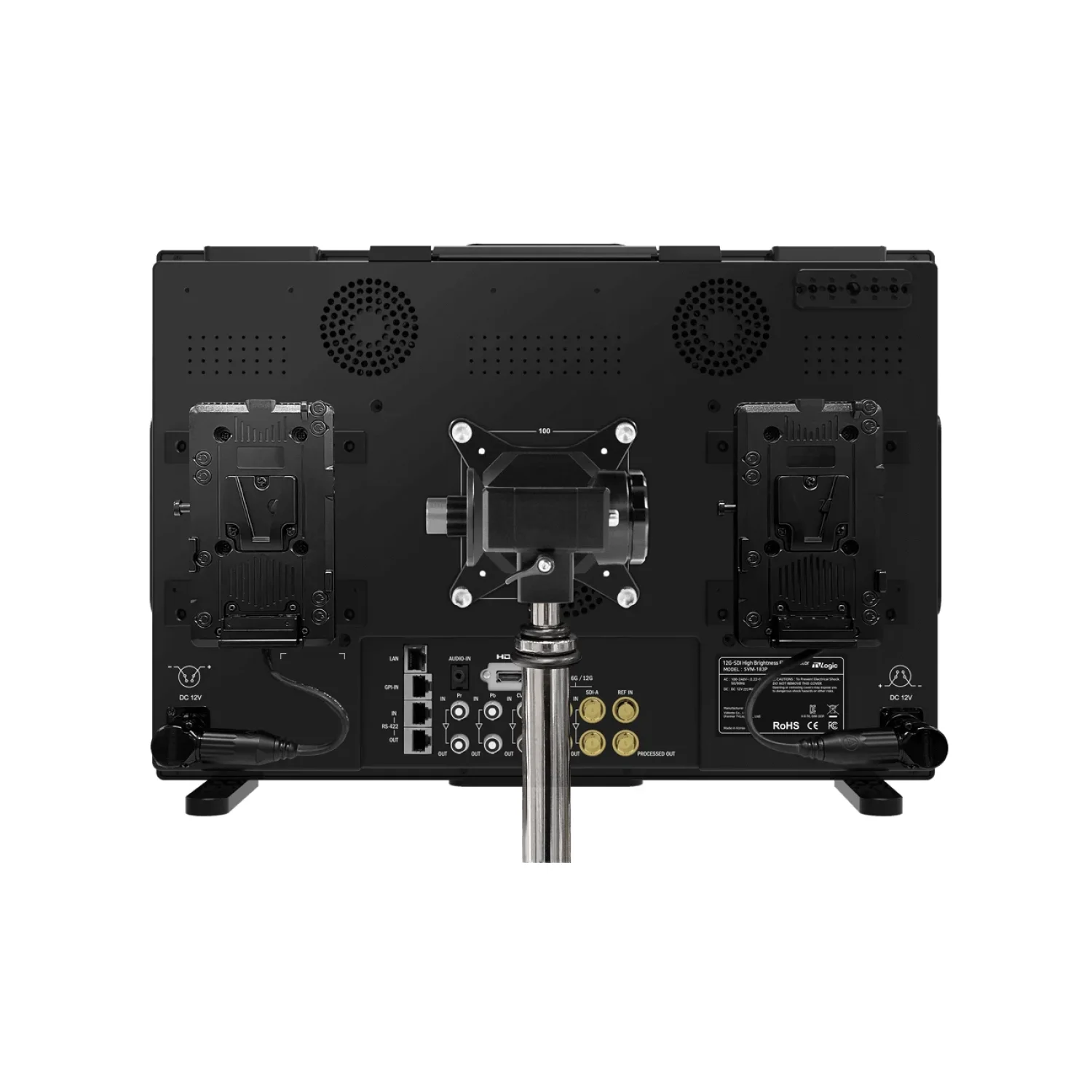

• Dual V-Mount battery plates
• Cheese plates
• Screen protection film

Key Features

• 1500 cd/m2 18.5″ Full HD LCD, 1000:1 contrast, 178 degree viewing angle
• 2 x 12G/6G/3G/HD/SD-SDI A/B inputs with loop outputs
• 12G-SDI input to 3G-SDI downscale output and processed monitor output
• HDMI 1.4, YPbPr, CVBS and reference inputs
• HDR (PQ, HLG, S-LOG3) and custom 3D LUT import by USB flash drive
• Waveform (YCbCr, RGB), vectorscope, histogram, audio level meter and audio phase meter
• Picture-by-picture, image capture and overlay, focus assist, marker, timecode, fast mode
• LAN remote control and firmware update, GPI and 2 x RS-422 (TVLogic or TSL protocol)

Best Suitable For / Use Cases

• Director and client monitoring on location shoots
• DIT and video village carts that need a large, bright display
• Outside broadcast and live event monitoring in daylight
• Battery-powered setups away from mains power
• Comparing two camera feeds with picture-by-picture

Paired With

• TVLogic G-Mount battery bracket (optional accessory)
• TVLogic Acrylic Protector (optional accessory)
• TVLogic Sun Hood (optional accessory)
• TVLogic Carrying Case (optional accessory)
• 12G-SDI cinema and broadcast cameras

FAQs

Can the SVM-183P run on batteries?

Yes. It accepts DC 12V/24V and has dual battery brackets. V-Mount plates are supplied, and G-Mount is available as an option.

Does the SVM-183P accept 4K signals?

Yes. The two SDI inputs accept 12G-SDI up to 3840 x 2160 60p, shown on the 1920 x 1080 panel. A 12G-SDI input can also be downscaled to a 3G-SDI output for HD equipment downstream.

Which HDR formats does it support?

PQ, HLG and S-LOG3, along with custom 3D LUTs loaded from a USB flash drive.

Is there a smaller version?

Yes. The SVM-130P shares the same feature set with a 13.9 inch 1920 x 1080 panel at 1500 cd/m2.

Where can I buy the TVLogic SVM-183P?

The TVLogic SVM-183P is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact the team for pricing and lead times.
