Panasonic AW-UB50 Full-Frame 4K Box Style Camera

Panasonic AW-UB50 Full-Frame 4K Box Style Camera

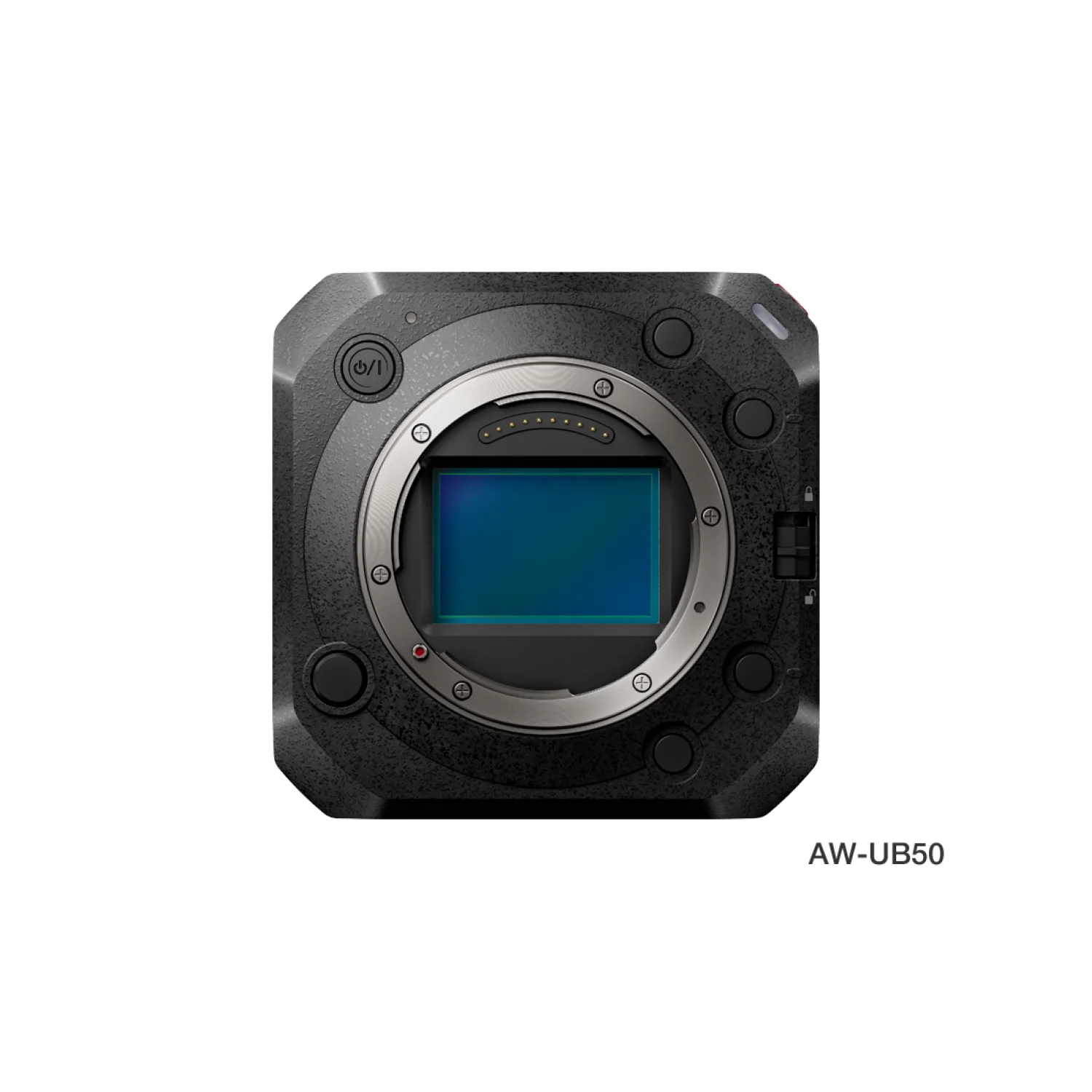

The Panasonic AW-UB50 is a box-style camera with a 24.2-megapixel full-frame MOS sensor and an L-mount, in a body under 10cm in height, width and depth excluding lens. It shares a common IP control protocol with Panasonic’s remote camera systems, so it can be run from the same Remote Operation Panel as Panasonic PTZ cameras.

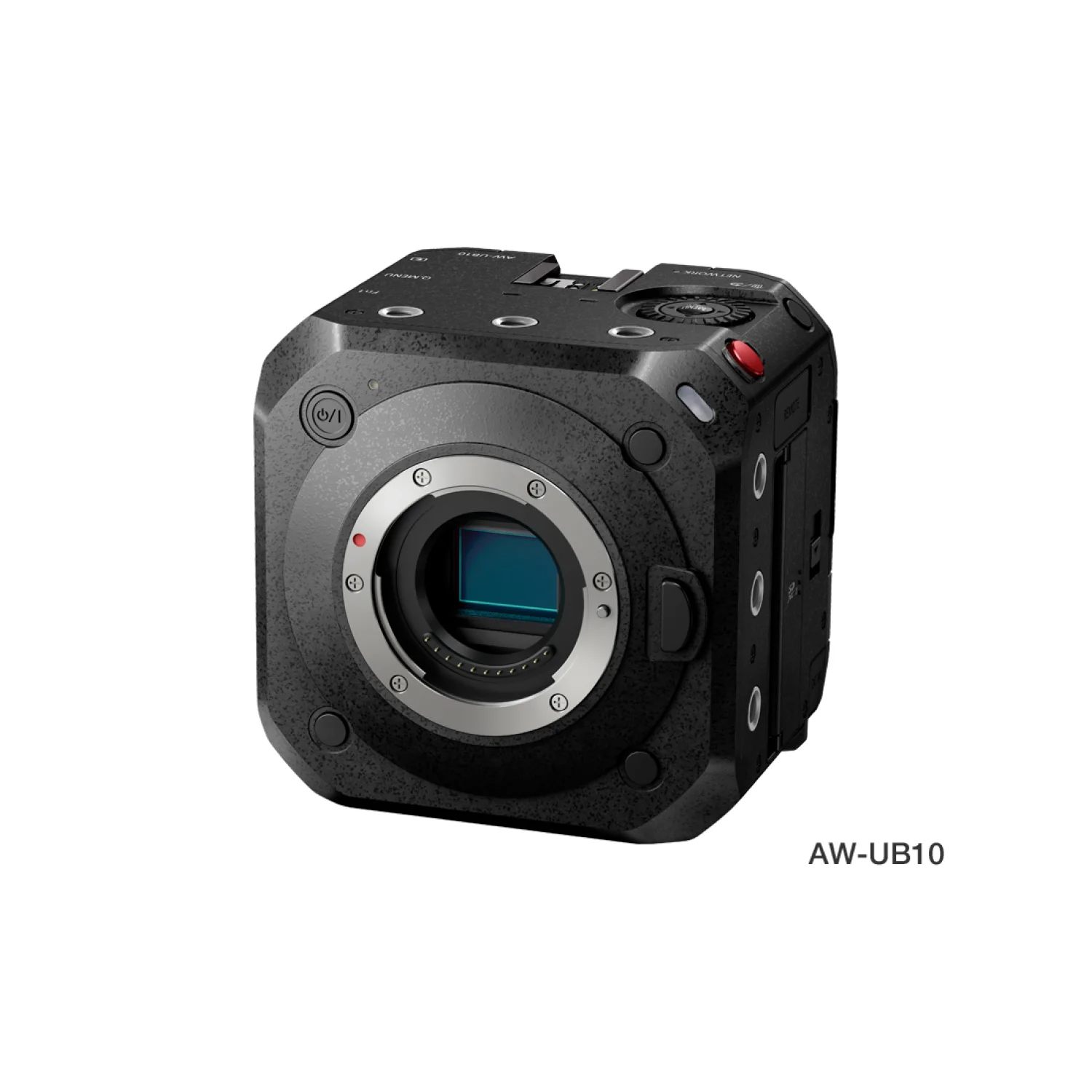

V-Log gives 14+ stops of latitude, and Dual Native ISO keeps noise down in low light. Colour profiles compatible with the AW-UE160 4K PTZ camera help match the AW-UB50 to PTZ cameras in a multi-camera setup, and the camera works with Media Production Suite. The sibling AW-UB10 uses a 10.3-megapixel 4/3-inch MOS sensor with a Micro Four Thirds mount and 13 stops in V-Log L, for wider framing of several subjects at once.

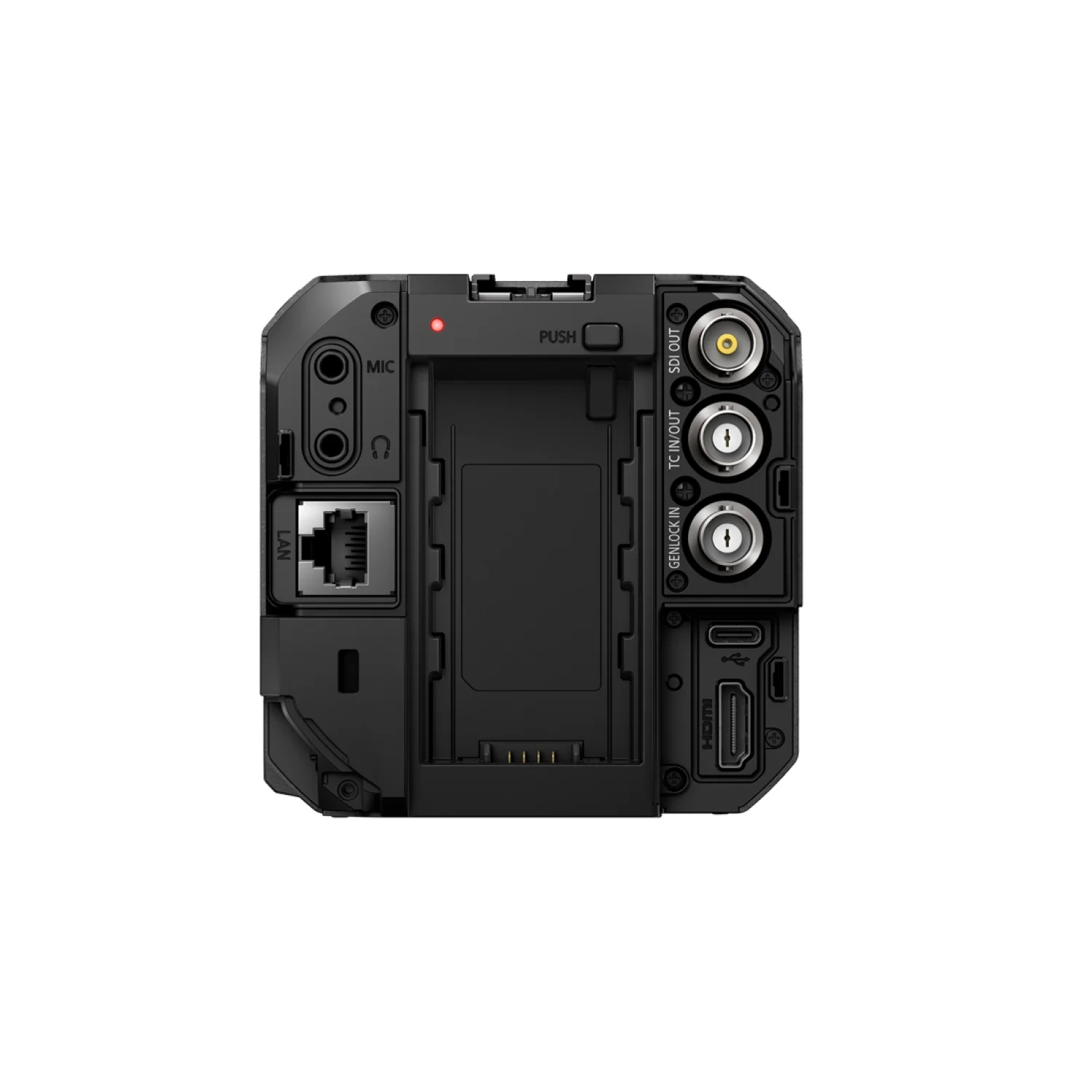

Connections include 3G-SDI out, timecode in and out, genlock in, HDMI Type A, USB-C, 3.5mm mic and headphones, and a LAN port that is PoE+ compliant, so video, control and power can run on one cable. Two SD card slots support relay or backup recording, and NDI HX2 is supported for IP workflows. Contact CINEOM Broadcast FZCO for a quote or technical advice on the AW-UB50 or AW-UB10.

Key Features

• 24.2MP 35mm full-size MOS sensor with L-mount (AW-UB10: 10.3MP 4/3-inch, Micro Four Thirds)
• V-Log with 14+ stops (AW-UB10: V-Log L, 13 stops) and Dual Native ISO
• Common IP control protocol with Panasonic PTZ cameras, operable from the ROP
• Colour profiles compatible with the AW-UE160 for multi-camera matching
• 3G-SDI out, TC in/out, genlock in, HDMI Type A, USB-C, mic and headphone jacks
• PoE+ (IEEE802.3at) LAN for video, control and power on a single cable
• Two SD card slots for relay or backup recording; NDI HX2 support
• Approx. 585 g body, 93.0 x 93.0 x 78.8 mm excluding protrusions

Best Suitable For / Use Cases

• Large-sensor camera positions alongside Panasonic PTZ cameras in live production
• Indoor sports and e-sports coverage that needs shallow depth of field
• Drone, slider and gimbal shooting where a small, light body matters
• Streaming and IP production over NDI HX2

Paired With

• Panasonic AW-UE160 4K PTZ camera
• Remote Operation Panel AK-HRP1010GJ or AK-HRP1015GJ
• Panasonic L-mount S-series lenses
• XLR microphone adapter DMW-XLR2
• Battery pack AG-VBR118G with charger AG-BRD50

FAQs

What is the difference between the AW-UB50 and AW-UB10?

The AW-UB50 has a 24.2-megapixel full-frame sensor with L-mount and 14+ stops in V-Log. The AW-UB10 has a 10.3-megapixel 4/3-inch sensor with Micro Four Thirds mount and 13 stops in V-Log L, suited to framing several subjects in one shot.

Can it be controlled with my Panasonic PTZ system?

Yes. It uses a common IP control protocol with Panasonic PTZ cameras and can be operated from the Panasonic Remote Operation Panel, with parameters such as focus and exposure handled centrally.

Can it be powered over the network cable?

Yes. The LAN port is PoE+ (IEEE802.3at) compliant, so one cable carries video, control and power. It can also run from a battery pack or the AC adapter.

Which IP streaming standards does it support?

NDI HX2 is supported. Panasonic lists RTMPS and SRT as planned additions.

Where can I buy the Panasonic AW-UB50?

The AW-UB50, and the AW-UB10 on request, are available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact us for pricing and lens options.
