Panasonic AK-UBX100 4K Multi Purpose Box Camera

Panasonic AK-UBX100 4K Multi Purpose Box Camera

The Panasonic AK-UBX100 is a box-style 4K multipurpose camera with a 2/3-type bayonet lens mount, built on the same platform as the AK-UCX100 4K studio camera. It is designed for studio production, sports broadcasting and live event stage work, and shares its menu interface and colour matching with the AK-UCX100 and the AW-UE160 4K PTZ camera.

Its MOS sensor uses oversampling to reach 2,000 TV lines horizontally and vertically, with F10 sensitivity at 2000 lux and a signal-to-noise ratio of 62 dB or higher. It outputs HLG (BT.2020) and SDR (BT.709) at the same time. For connectivity it has two 12G-SDI outputs, an HD-SDI output, genlock input and two SFP+/28 slots, giving A/B redundant 4K routes over optical, IP or baseband. IP support covers SMPTE ST 2110 with network redundancy, NDI High Bandwidth, SRT and FreeD (lens information only).

Camera control and tally share a single LAN line, and the AK-UBX100 connects to the same Remote Operation Panel as the AK-UCX100 and AW-UE160. At approx. 1.9 kg, with flat sides and 1/4-inch screw holes, it suits robotic heads, cranes and gimbals, and it adds PDAF autofocus in the camera head. Contact CINEOM Broadcast FZCO for a quote or technical advice on integrating the AK-UBX100 into your system.

Key Features

• 2/3-type bayonet lens mount, 19.29 million pixel MOS sensor, ND filter turret (CLEAR, 1/4, 1/16, 1/64)
• 2,000 TV lines UHD resolution (center), F10 sensitivity at 2000 lx, S/N 62 dB or above
• Simultaneous HLG (BT.2020) and SDR (BT.709) output

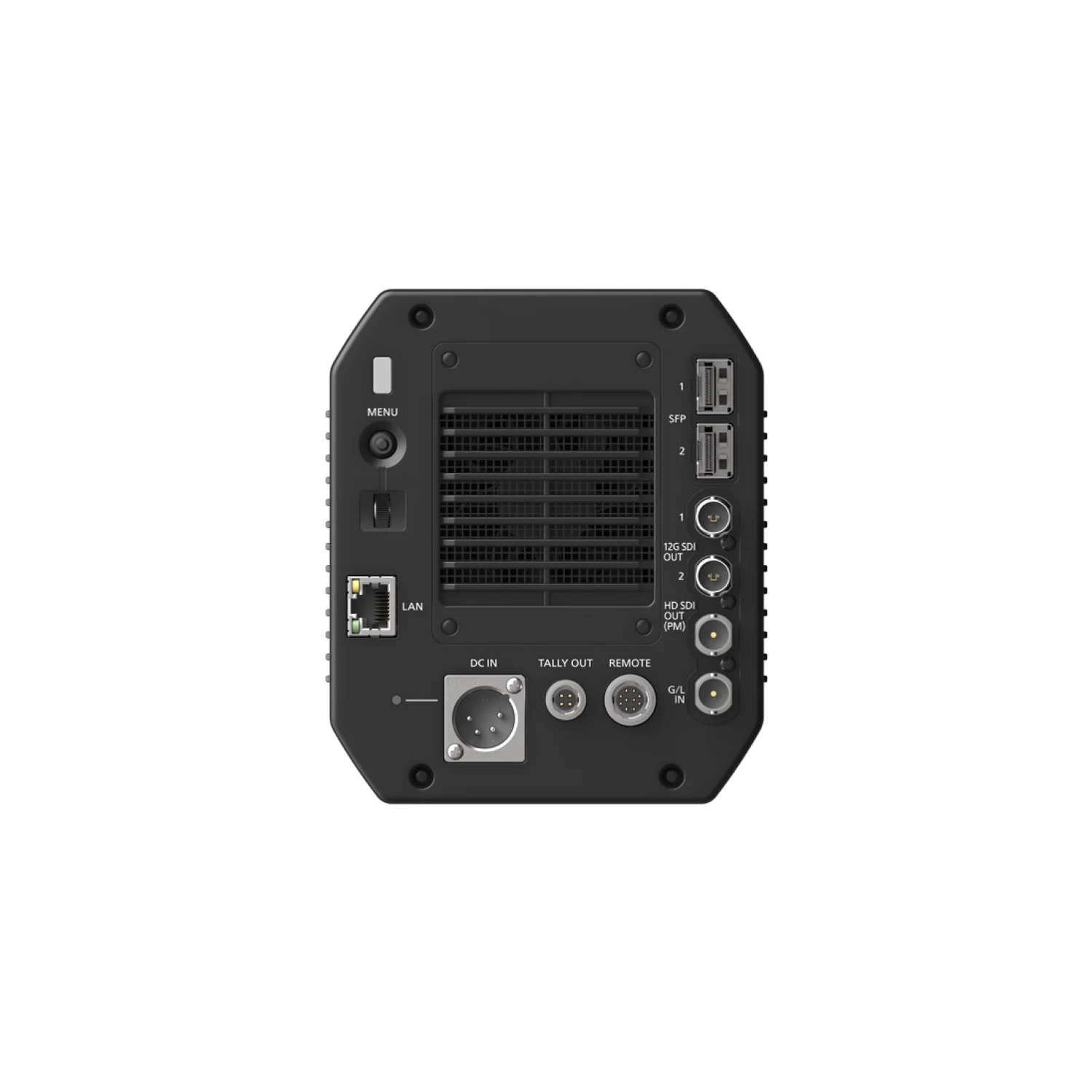

• Two 12G-SDI outputs, HD-SDI output, genlock input and two SFP+/28 slots for 4K redundant connections
• SMPTE ST 2110 with network redundancy, NDI High Bandwidth, SRT and FreeD (lens information only)
• Control and tally over a single LAN line; works with the same ROP as AK-UCX100 and AW-UE160
• PDAF autofocus, focus assist and optional HD optical low-pass filter for moire reduction

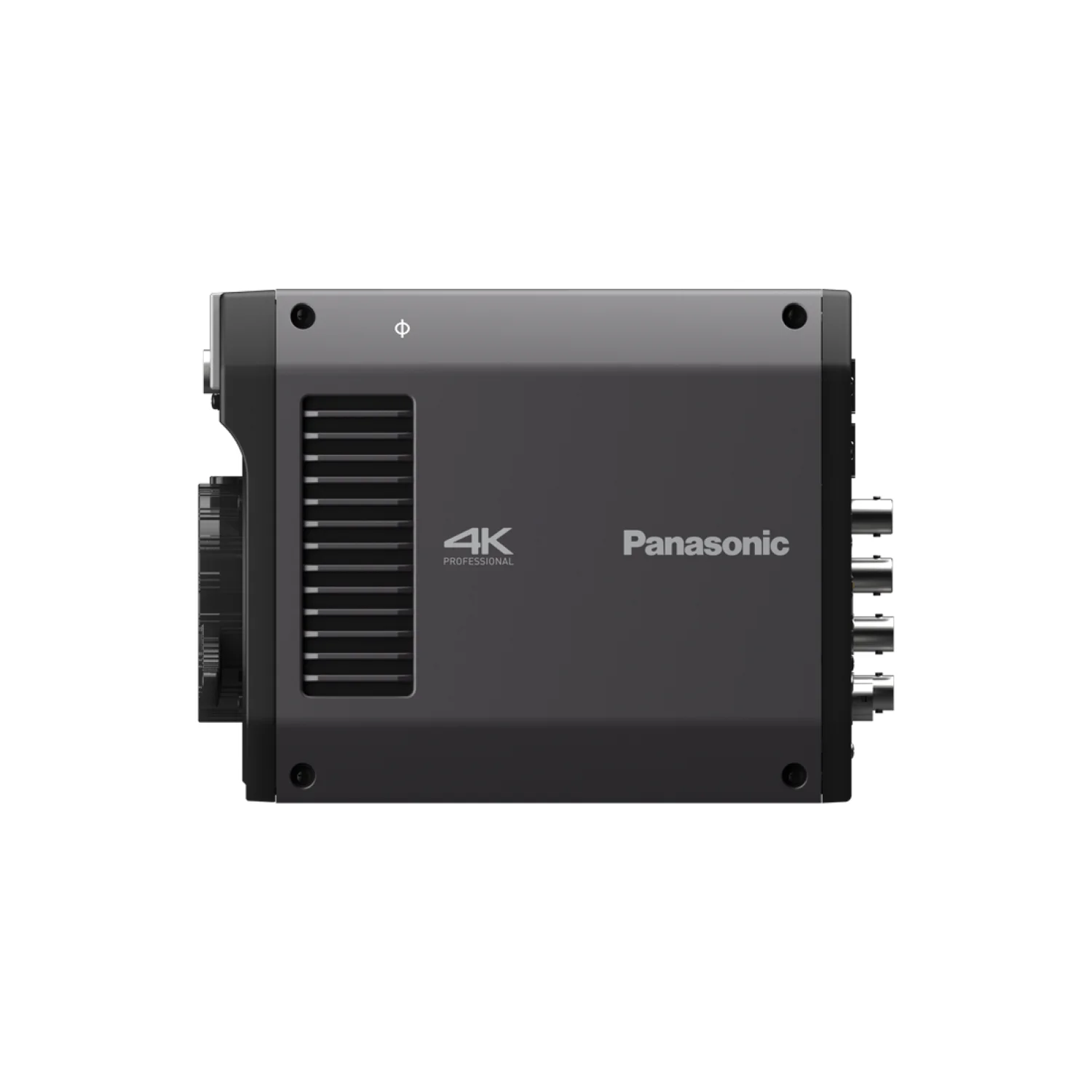

• Approx. 1.9 kg body, 118 x 140 x 175 mm, flat four-sided design with 1/4-inch screw holes

Best Suitable For / Use Cases

• Studio production alongside AK-UCX100 system cameras and AW-UE160 PTZ cameras
• Sports broadcasting from robotic heads, cranes and fixed positions
• Live event and concert coverage, including stages with LED walls
• Remote and IP production over SMPTE ST 2110, NDI or SRT

Paired With

• Panasonic AK-UCX100 4K studio camera
• Panasonic AW-UE160 4K PTZ camera
• Remote Operation Panel AK-HRP1010GJ or AK-HRP1015GJ
• Master Setup Unit AK-MSU1000GJ
• Remote Camera Controller AW-RP150GJ or AW-RP60GJ

FAQs

What lenses does the AK-UBX100 take?

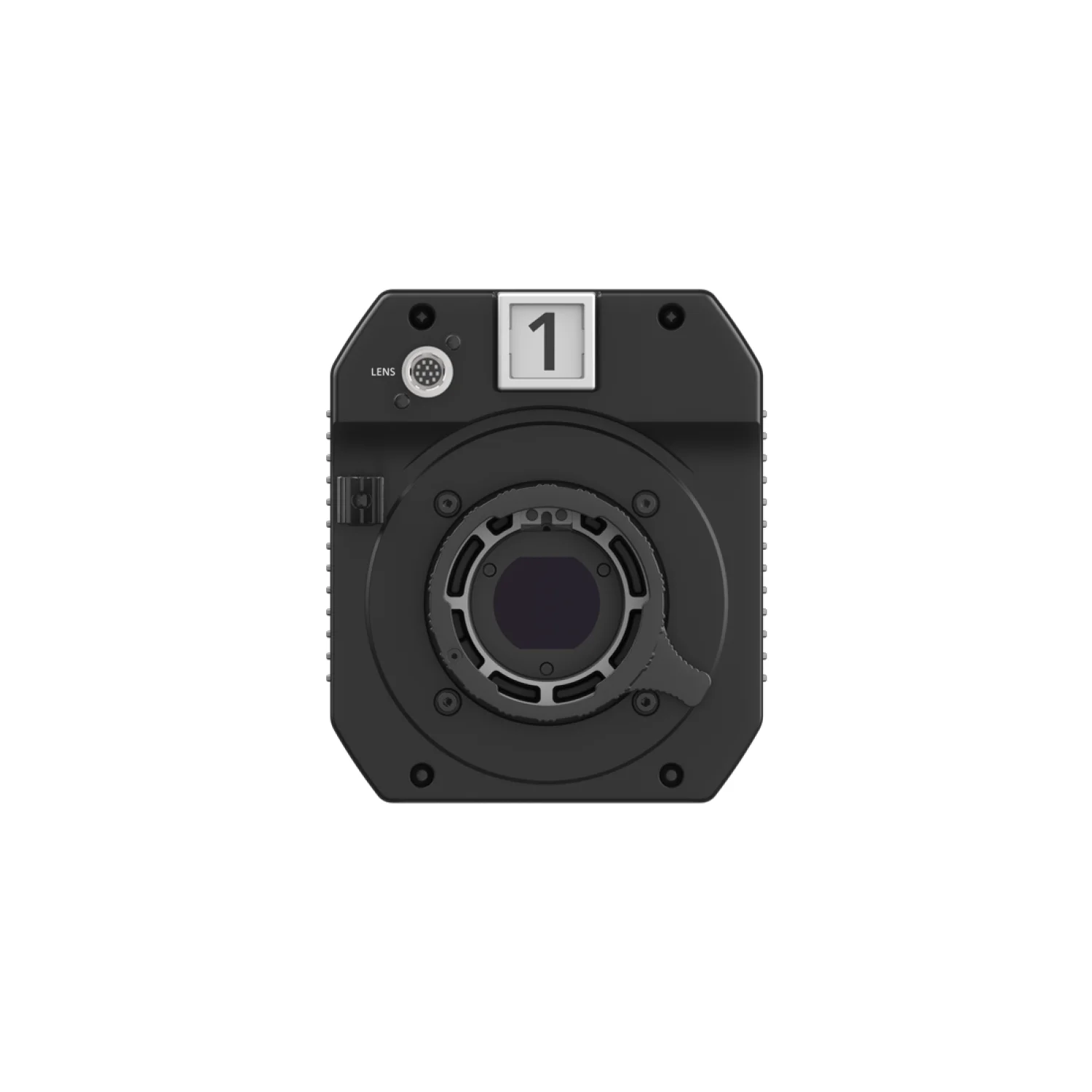

It has a 2/3-type bayonet lens mount with a 12-pin lens connector, so it accepts 2/3-inch broadcast lenses.

Which IP standards are supported?

SMPTE ST 2110 with network redundancy, NDI High Bandwidth, SRT and FreeD, where FreeD carries lens information only.

Can it match colour with my Panasonic studio and PTZ cameras?

Yes. It uses the same platform and menu interface as the AK-UCX100, connects to the same ROP as the AK-UCX100 and AW-UE160, and is designed to simplify colour matching between them.

Are SFP modules included?

No. Panasonic states that the SFP+/28 modules for the two SFP slots are sold separately.

Where can I buy the Panasonic AK-UBX100?

The AK-UBX100 is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact us for pricing and system configuration.
