Panasonic AW-UE160 4K PTZ Camera with 20x Zoom and ST 2110 Support

Panasonic AW-UE160 4K PTZ Camera with 20x Zoom and ST 2110 Support

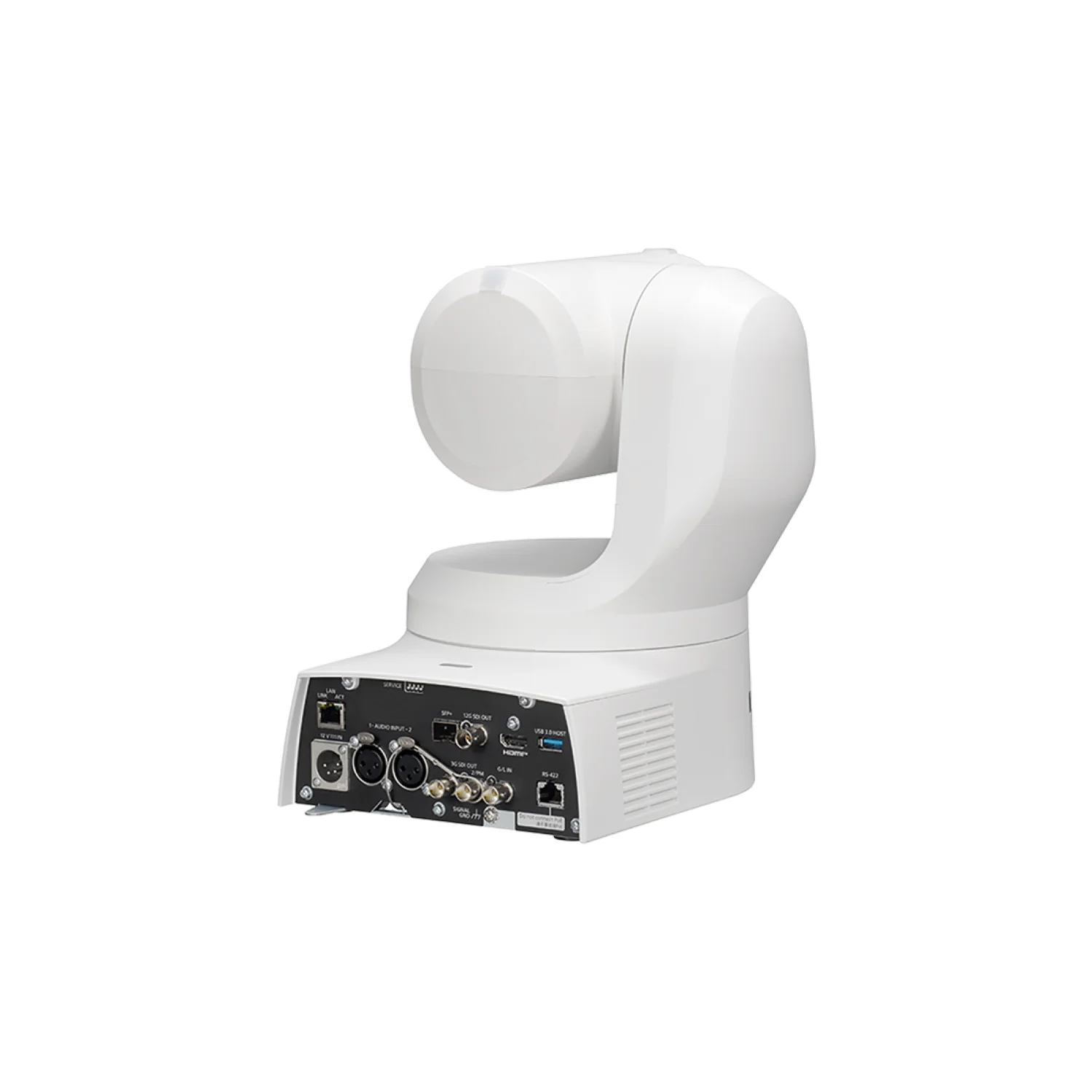

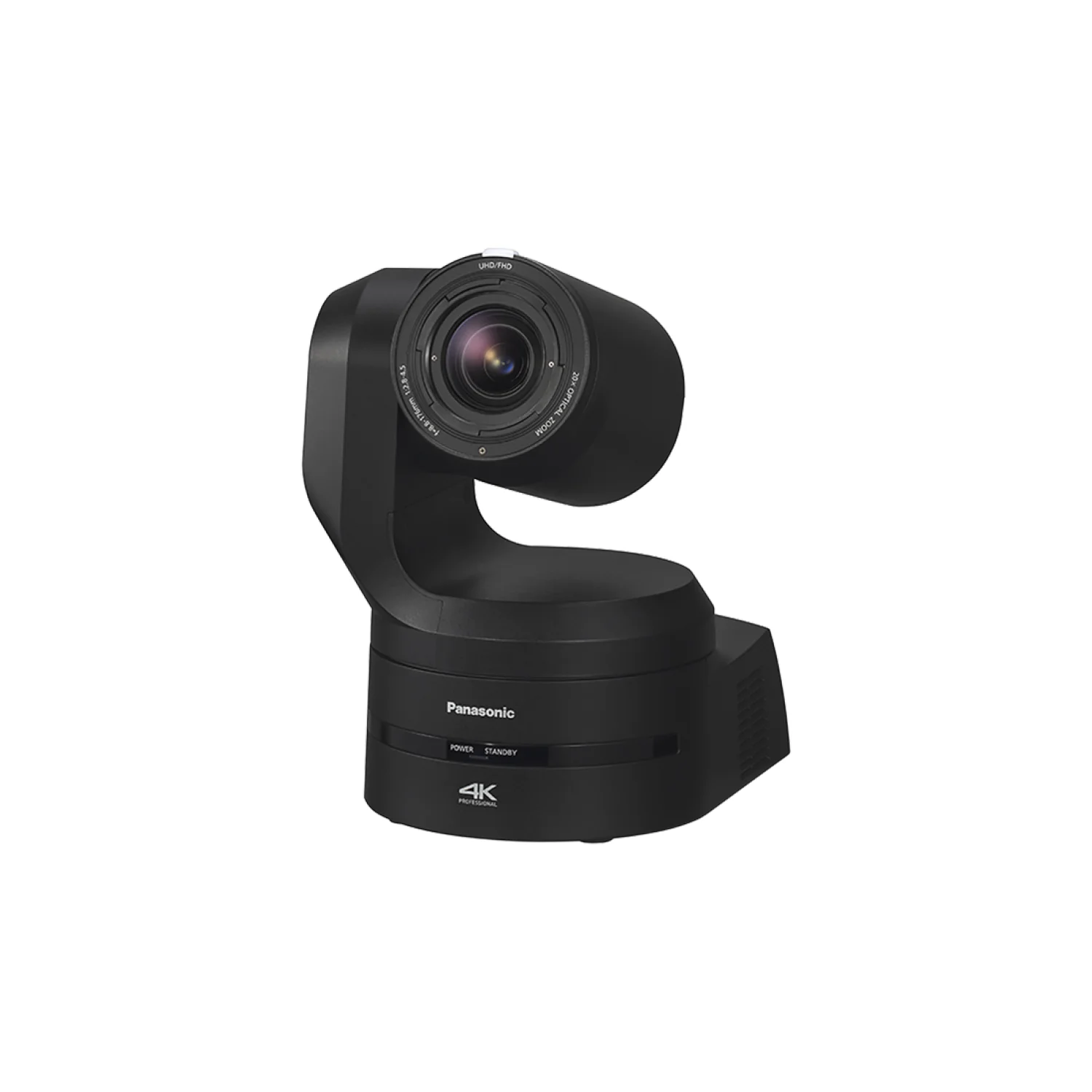

The Panasonic AW-UE160 is a 4K integrated PTZ camera that brings studio camera image quality to remote heads. It uses a 1-type 4K MOS sensor with a 20x optical zoom lens (F2.8 to F4.5, 24.5 mm to 490 mm in 35 mm terms) and reaches F14 at 2000 lx in Low Light mode. It comes in two finishes: Pearl White AW-UE160W and Black AW-UE160K.

It is built for large events, studio recording and streaming where crew size and cost are limited. Phase Detection Autofocus, a focus guide for manual operation, V-Log and HLG compatibility, optical and electronic image stabilization and an optical low-pass filter for moire reduction keep the picture matched with system cameras. The newly developed PTZ mechanism pans ±175° and tilts from -30° to 210° at up to 180°/s, and runs at NC35 or less.

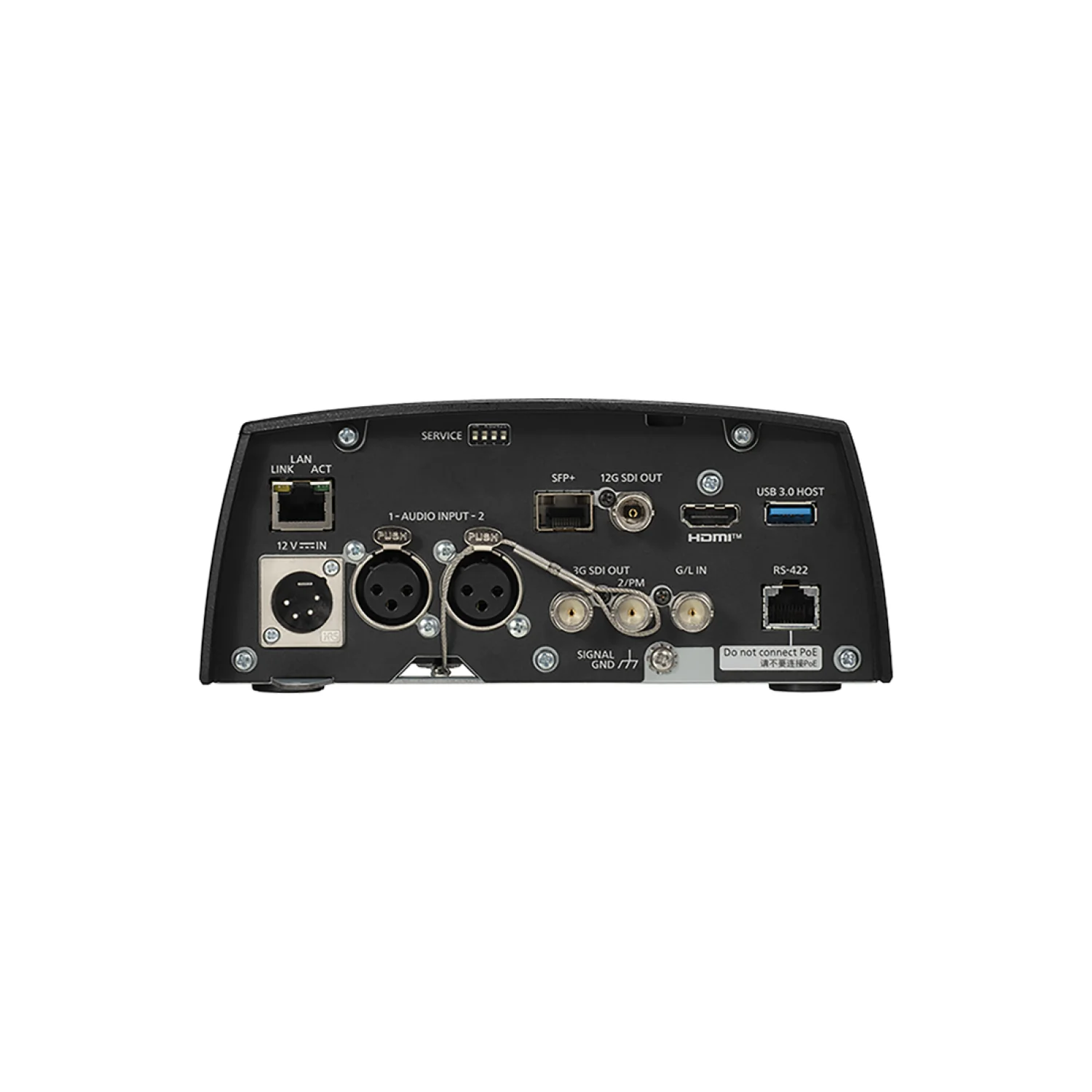

Connections cover 12G-SDI, two 3G-SDI outputs, HDMI 2.0, SFP+ for SMPTE ST 2110 (activated with the optional AW-SFU60 software key) with a return video input, NDI High Bandwidth, NDI HX2, SRT and RTMP streaming, two XLR audio inputs and PoE++ power. Contact CINEOM Broadcast FZCO for a quote or technical advice on an AW-UE160 PTZ system.

Key Features

• 1-type 4K MOS sensor, approx. 9.62 million effective pixels
• 20x optical zoom, F2.8 to F4.5, f = 8.8 mm to 176 mm (24.5 mm to 490 mm equivalent)
• Phase Detection Autofocus (PDAF) with focus guide and auto iris window
• V-Log and HDR (HLG, BT.2020) support, 1080/119.88p and 1080/100p high-speed output
• 12G-SDI, 3G-SDI x2, HDMI 2.0 and SFP+ outputs
• SMPTE ST 2110 with JPEG XS and return input (requires AW-SFU60 key), NDI High Bandwidth, NDI HX2, SRT, RTMP
• Auto Framing powered by AI, crop output, FreeD for AR/VR and rear tally lamp
• Two XLR audio inputs with phantom power, PoE++ (IEEE802.3bt) or 12 V DC power

Best Suitable For / Use Cases

• Large-scale live events and concerts with reduced camera crews
• Broadcast studios mixing PTZ heads with system cameras
• IP production on SMPTE ST 2110 or NDI networks
• Houses of worship, auditoriums and lecture halls needing quiet 4K PTZ cameras
• Virtual studio and AR productions using FreeD tracking data

Paired With

• Panasonic AW-RP150GJ remote camera controller
• Panasonic AW-RP200GJ remote camera controller
• Panasonic AK-HRP1010GJ remote operation panel
• Panasonic AW-SFU60 SMPTE ST 2110 software key
• Panasonic AV-UHS500 live switcher

FAQs

What is the difference between the AW-UE160W and AW-UE160K?

Only the finish. The AW-UE160W is Pearl White and the AW-UE160K is Black. Specifications are the same.

Does the AW-UE160 support SMPTE ST 2110?

Yes, through the SFP+ port, after activation with the separately sold AW-SFU60 operational software key. It supports uncompressed HD and JPEG XS compressed 4K output, plus a return video input.

Can it be powered over the network?

Yes. It supports PoE++ to IEEE802.3bt as well as 12 V DC through the XLR connector.

Which controllers work with the AW-UE160?

Panasonic lists the AW-RP150GJ, AW-RP60GJ, AK-HRP1010GJ, AK-HRP1015GJ and AK-HRP250GJ, and the AW-RP200GJ is listed as an accessory.

Where can I buy the Panasonic AW-UE160?

Both AW-UE160 finishes are available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact the team for pricing and PTZ system design.
