Konvision MS-E3210M 32″ 4K HDR Mini-LED Surgical Monitor

Konvision MS-E3210M 32″ 4K HDR Mini-LED Surgical Monitor

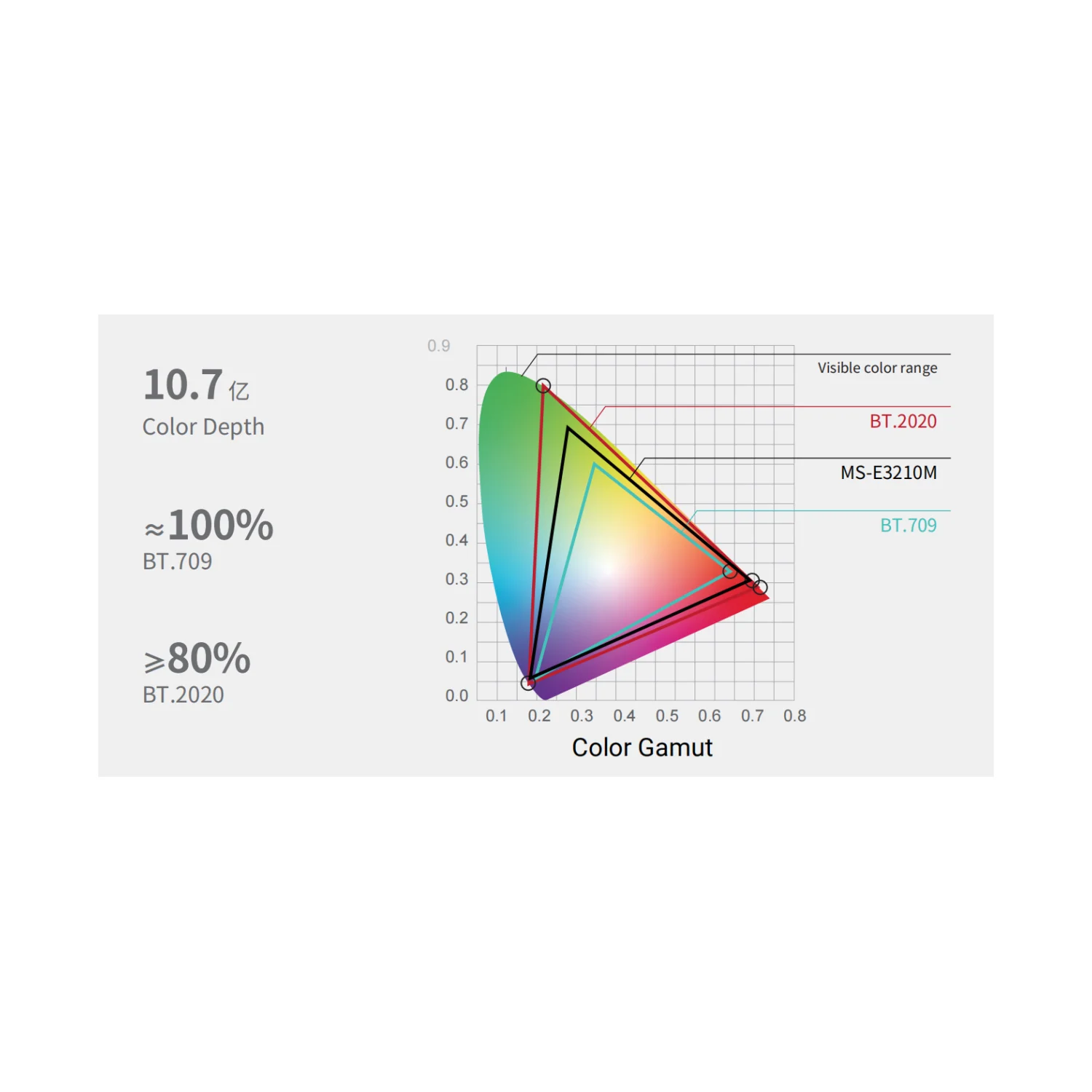

The Konvision MS-E3210M is a 31.5-inch 4K surgical display for endoscopy, microsurgery and other procedures where the surgical team works from the screen. It uses a 10-bit Mini-LED panel at 3840×2160 with full-array local dimming across 2304 independently controlled zones, reaching 1000 nits and a 1,000,000:1 contrast ratio. The panel covers the BT.2020 colour gamut with 1.07 billion colours and supports HDR.

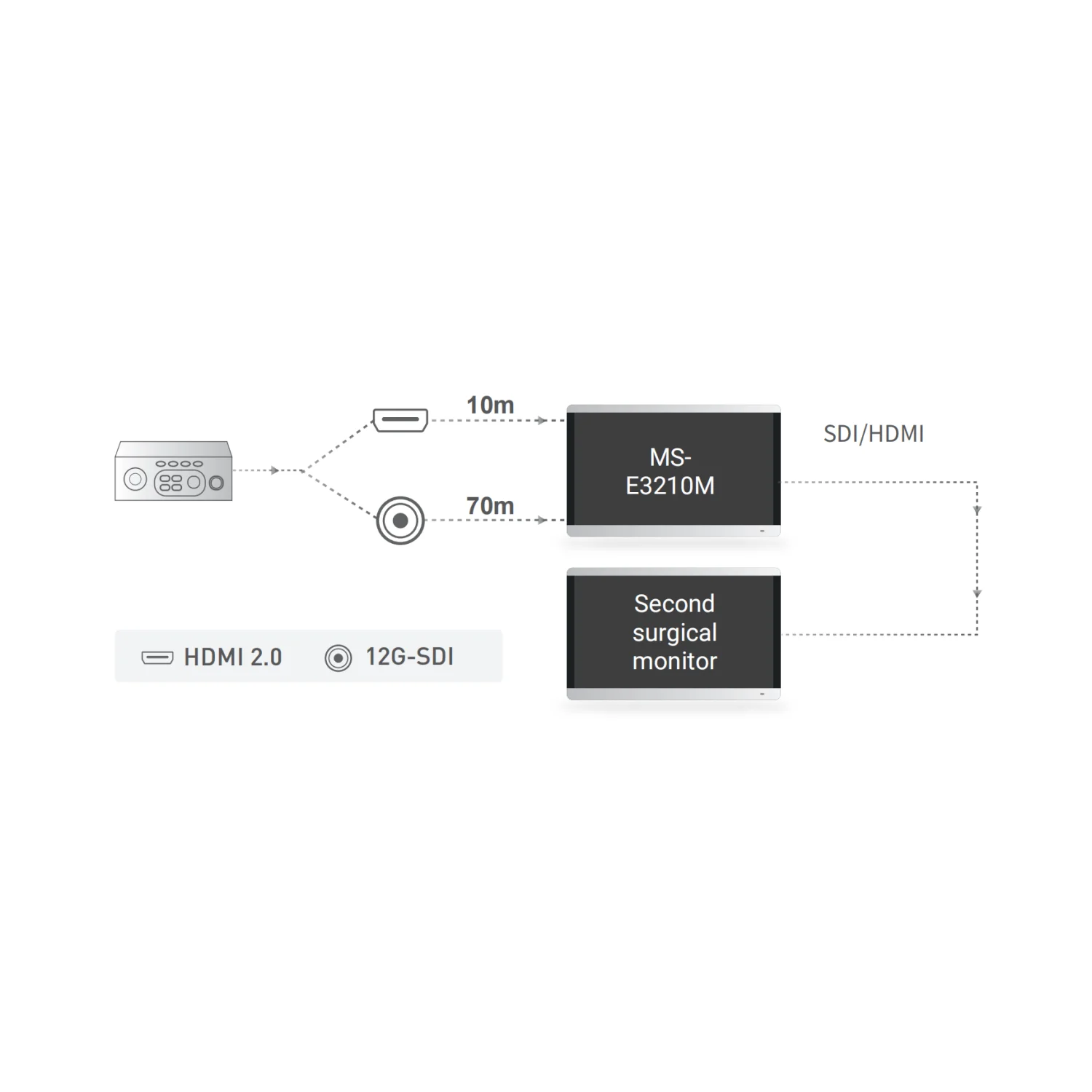

The E in the model name refers to the built-in interface design: connectors face downward in a recessed bay closed by a cable cover, which keeps wiring tidy and the housing easy to wipe down in the operating room. Inputs are one 12G-SDI, three 3G-SDI, one HDMI 2.0 and one single-link DVI-D. A 12G-SDI output and an HDMI 2.0 output pass the image on to a second surgical monitor for real-time sharing. Quad-View shows four sources together, for example the endoscope feed beside patient vital signs.

For the surgical team, the monitor offers 180 degree image rotation and left-right mirroring, Konvision Image Plus enhancement with contour, colour and lift modes, anti-reflective scratch-resistant glass and a flat front with touch buttons for cleaning. It accepts both AC 100-240V and DC 24V power and provides a 12V 2A DC output for peripherals. Contact CINEOM Broadcast FZCO for a quote or technical advice on integrating the MS-E3210M.

Included in the Box

• Power cord
• Desktop stand

Key Features

• 31.5″ 3840×2160 10-bit Mini-LED panel with 2304-zone full-array local dimming
• 1000 nits brightness, 1,000,000:1 contrast, BT.2020 gamut, 1.07 billion colours, HDR
• Inputs: 1x 12G-SDI, 3x 3G-SDI, 1x HDMI 2.0, 1x DVI-D; outputs: 1x 12G-SDI, 1x HDMI 2.0
• Downward-facing recessed interfaces with cable cover for tidy, hygienic cabling
• Quad-View display of four sources at once
• 180 degree image rotation and left-right mirroring
• Anti-reflective, scratch-resistant glass and a flat, easy-to-clean front with touch buttons
• AC 100-240V and DC 24V power inputs, 12V 2A DC output, VESA 100×100 mount

Best Suitable For / Use Cases

• Laparoscopic and endoscopic surgery
• Microsurgery
• Operating room displays sharing an image with a second surgical monitor
• Surgical teaching and observation rooms

Paired With

• 4K endoscopy camera systems with 12G-SDI or HDMI 2.0 output
• A second surgical monitor fed from the 12G-SDI or HDMI loop output
• Patient monitoring systems via the 3G-SDI, HDMI or DVI inputs for Quad-View
• VESA 100×100 ceiling or cart mounts

FAQs

What does the built-in interface design mean?

The connectors sit in a recessed, downward-facing bay with a cable cover, so cables are organised and hidden, which helps keep the surgical environment clean and safe.

What is the difference between the MS-E3210M and the MS-U3210M?

Both use the same 31.5-inch 4K Mini-LED panel. The MS-E3210M adds the built-in interface bay and cable cover. The MS-U3210M has an SDI SFP+ input, a 5V DC output alongside the 12V output, and lists 3D LUT colour calibration.

Can it show more than one source at once?

Yes. Quad-View displays four input sources simultaneously, for example the endoscope image alongside patient vital signs.

Does it carry medical device certification?

The Konvision product page does not list medical certifications for this model. Contact CINEOM Broadcast FZCO for current regulatory documentation for your market.

Where can I buy the Konvision MS-E3210M?

The MS-E3210M is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact the team for pricing and project support.
