Panasonic AW-RP150GJ Remote Camera Controller with 7-inch Touch Panel

Panasonic AW-RP150GJ Remote Camera Controller with 7-inch Touch Panel

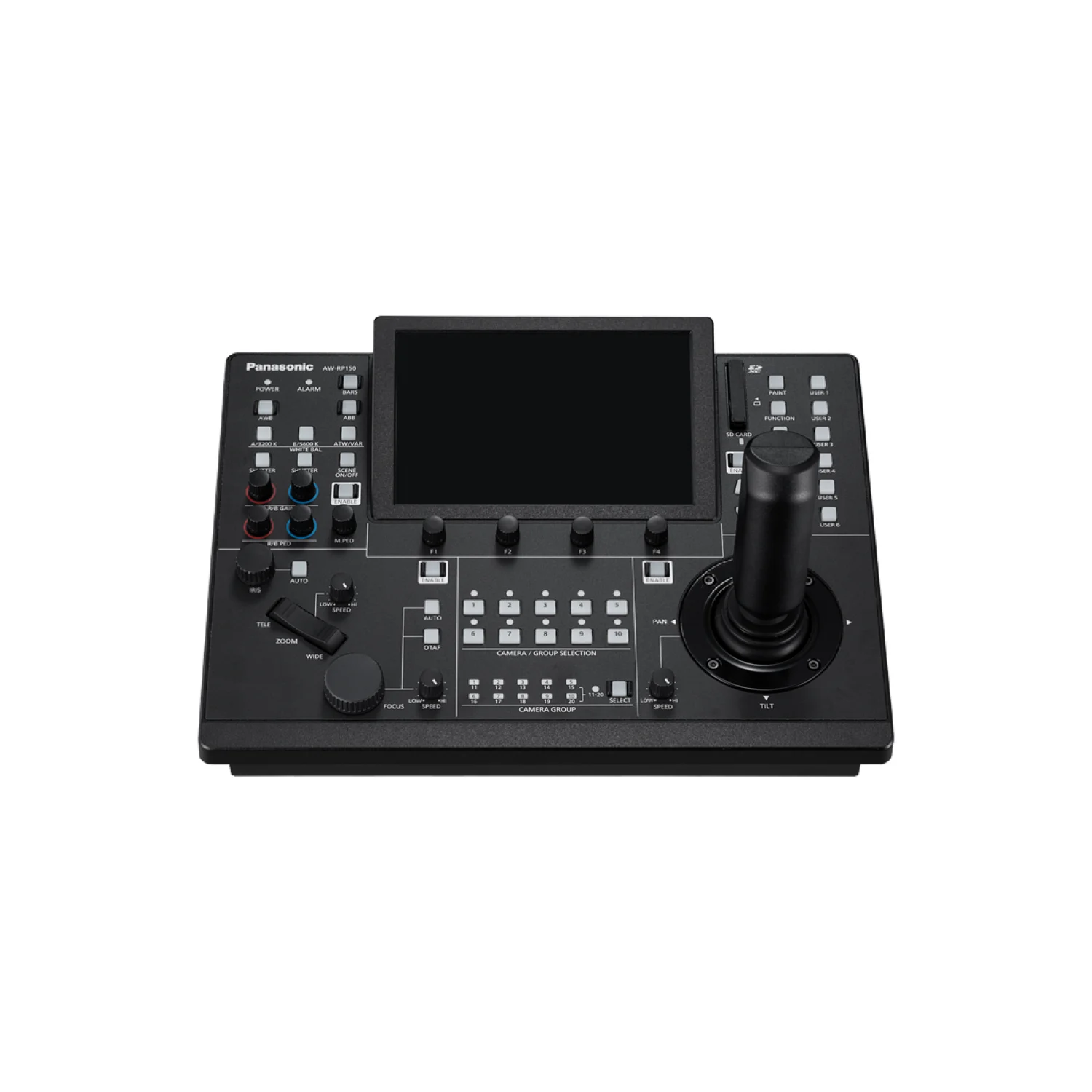

The Panasonic AW-RP150GJ is a remote camera controller for Panasonic PTZ camera systems, designed so one operator can run several cameras. The ZOOM/FOCUS rocker sits on the joystick, so pan, tilt, zoom and focus can all be handled with one hand, and the built-in 7-inch touch display gives quick access to the essential camera functions.

It connects up to 200 cameras over IP or 5 cameras over RS-422, with 10 camera selection buttons and 20 camera groups. A 3G-SDI input with active thru output lets the operator view a camera picture on the controller and use the touch focus function to set focus on a point on screen. It stores 100 presets, records tracing memory of up to 5 minutes per camera, and can copy camera settings across multiple cameras.

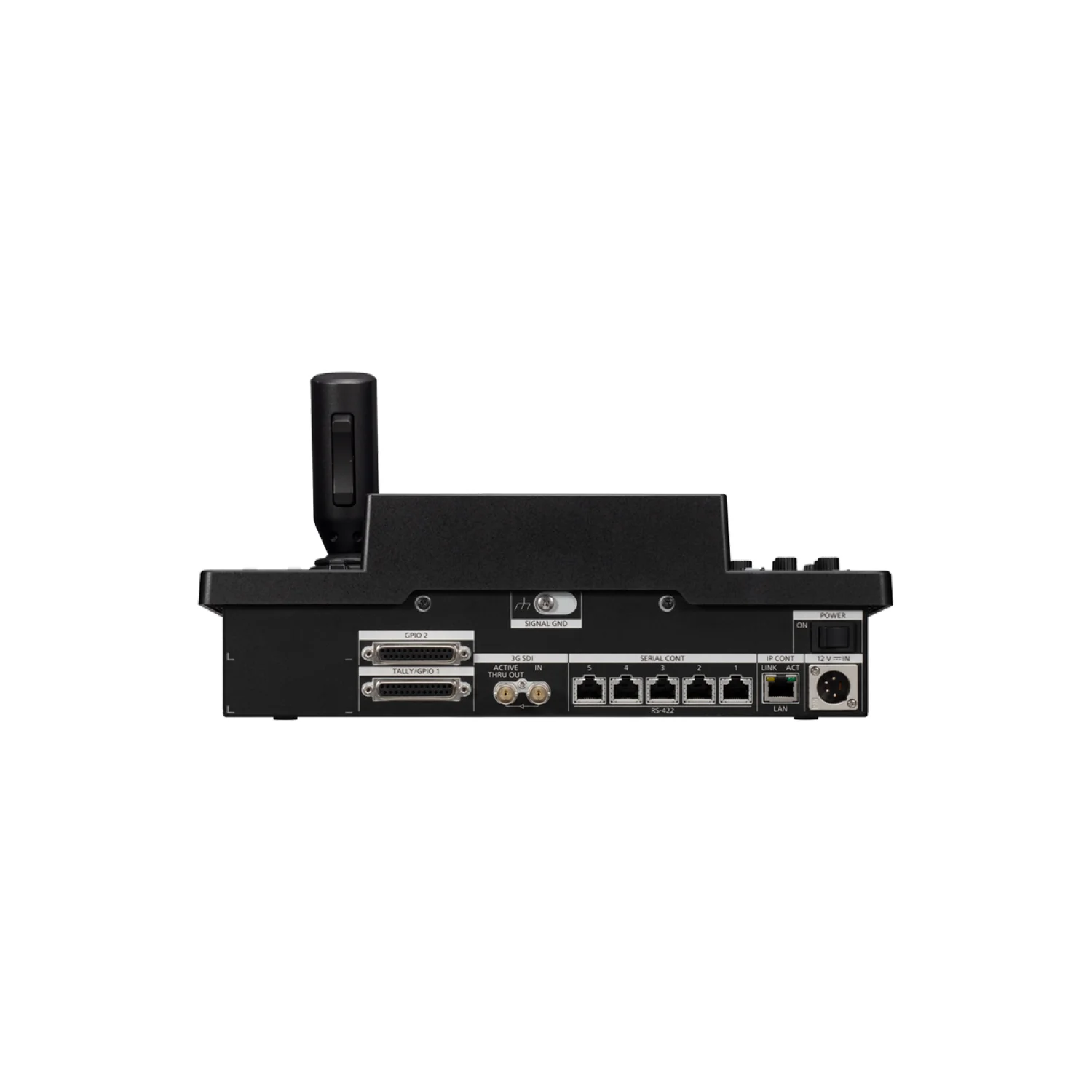

The unit takes power over PoE+ or 12 V DC and has two D-sub 25-pin Tally/GPIO ports for integration with switchers and tally systems, plus an SD card slot. Contact CINEOM Broadcast FZCO for a quote or technical advice on setting up the AW-RP150GJ with your PTZ cameras.

Key Features

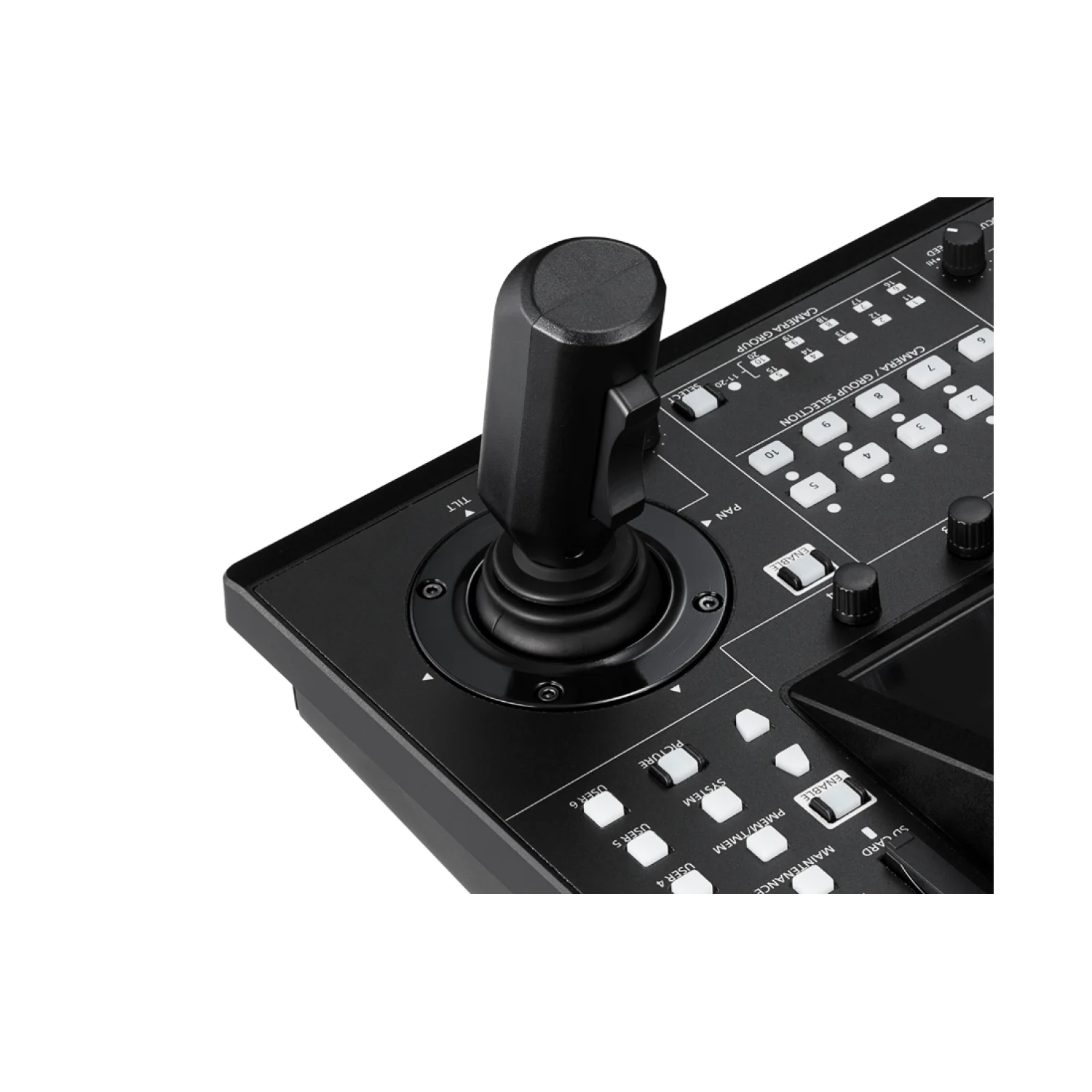

• Joystick with ZOOM/FOCUS rocker for single-handed pan, tilt, zoom and focus
• 7-inch WVGA (800 x 480) touch panel GUI monitor
• Touch focus and smooth creation of cropped images
• Controls up to 200 cameras via IP or 5 via RS-422, 20 groups of 10
• 100 preset memories and tracing memory up to 5 minutes per camera, 10 settings per camera
• 3G-SDI input with active thru output
• PoE+ power or 12 V DC, IP control over 100BASE-TX
• Tally/GPIO 1 and GPIO 2 on D-sub 25-pin, SD memory card slot

Best Suitable For / Use Cases

• Live event and concert production with multiple PTZ cameras
• Broadcast studios running remote camera systems
• Houses of worship, auditoriums and lecture capture
• Sports venues and circuits with large IP camera networks
• One-person operation of a multi-camera PTZ setup

Paired With

• Panasonic AW-UE160 4K PTZ camera
• Panasonic AW-PS551 AC adaptor
• Panasonic AV-UHS500 live switcher
• Panasonic AV-HSW10 live switcher

FAQs

How many cameras can the AW-RP150GJ control?

Up to 200 cameras over IP or 5 cameras over RS-422 serial, organised in 20 groups of 10 cameras.

Can it be powered over Ethernet?

Yes. It supports PoE+ on the IP CONT port, and it can also run from 12 V DC. The AW-PS551 AC adaptor is listed as an accessory.

What does the 3G-SDI input do?

It lets you feed a camera picture into the controller to view on the touch panel and use the touch focus function. An active thru output passes the signal on.

What are the size and weight?

It measures 342 x 178 x 245 mm (W x H x D), excluding protrusions, and weighs approximately 3.2 kg.

Where can I buy the Panasonic AW-RP150GJ?

The AW-RP150GJ is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact the team for pricing and compatibility advice.
