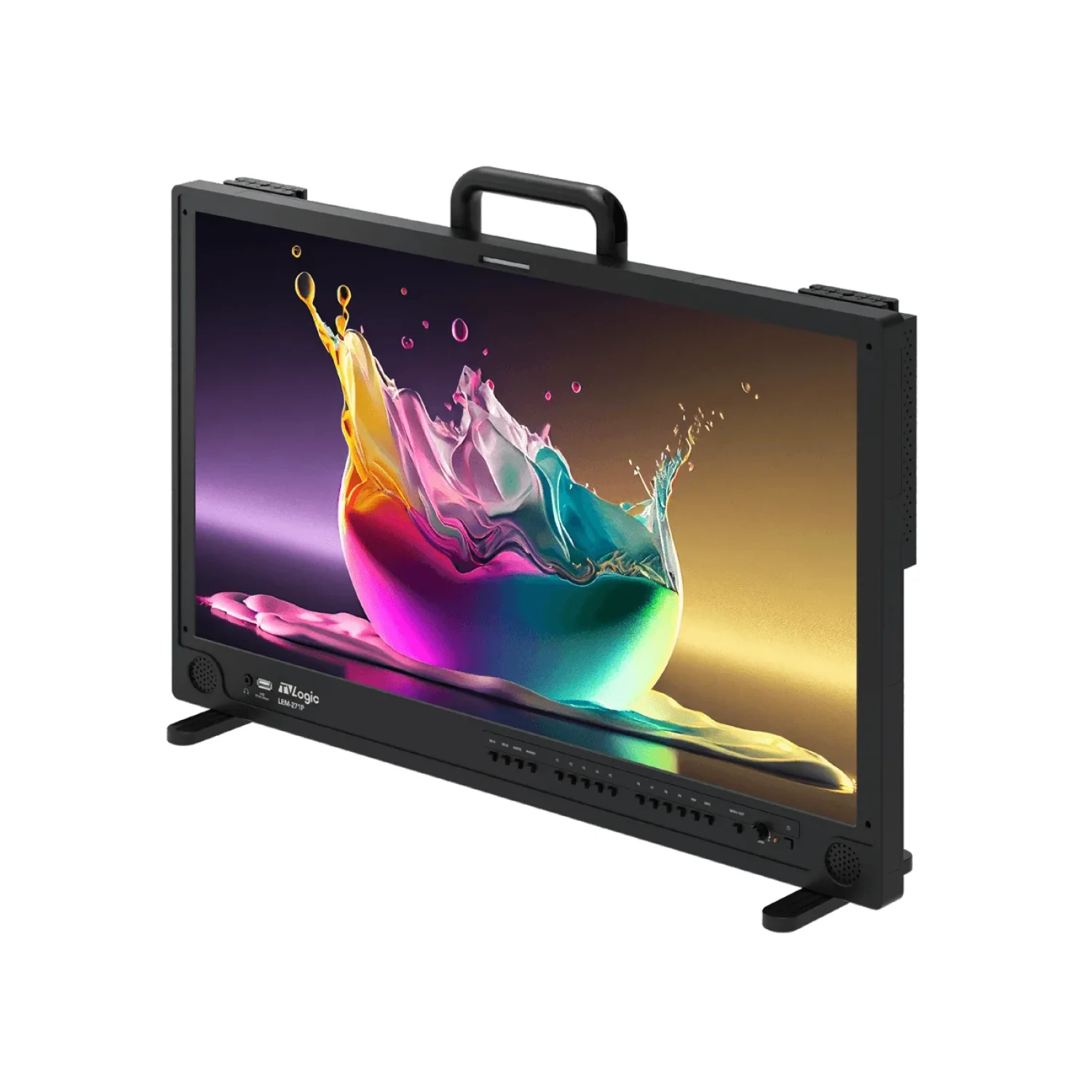

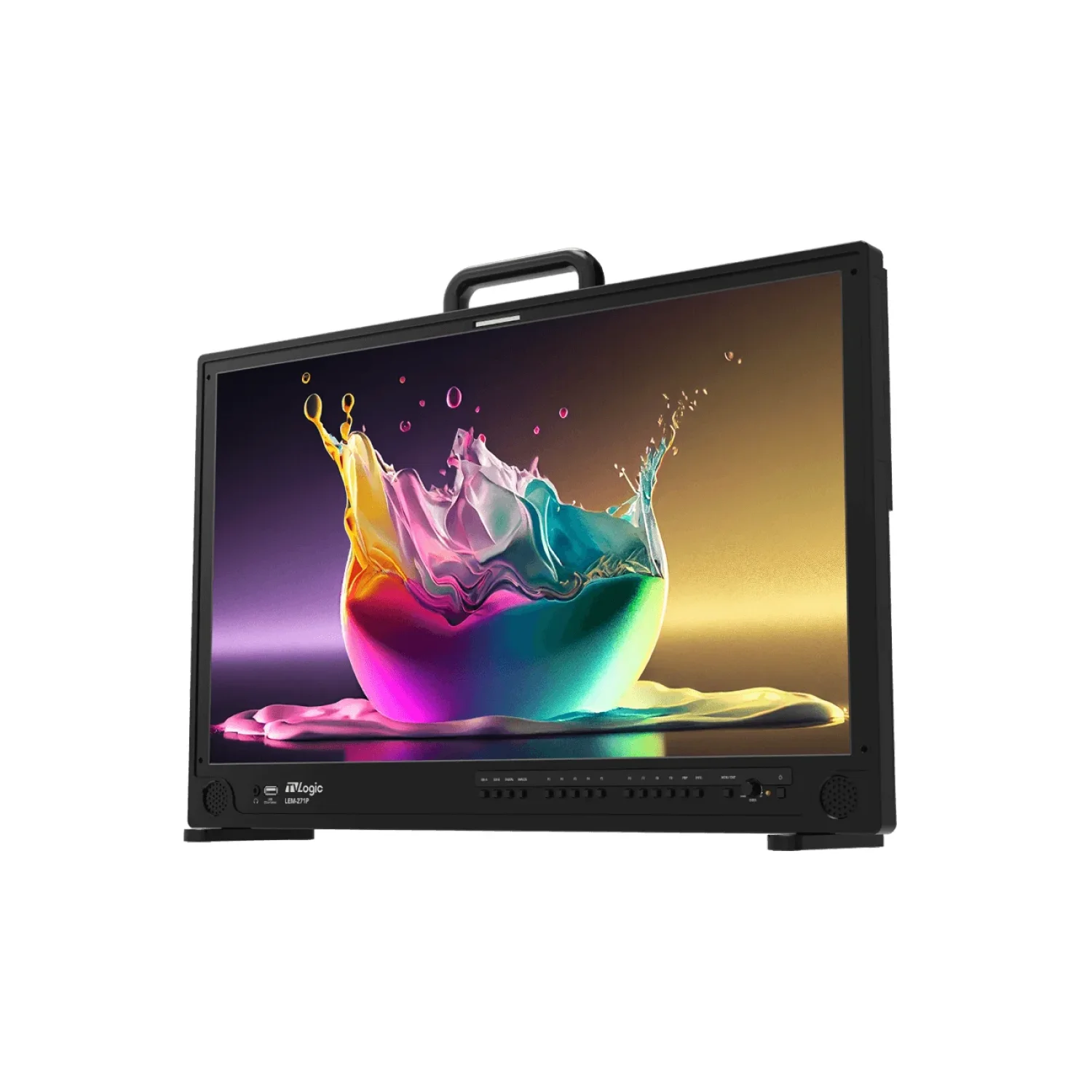

TVLogic LEM-271P 26.5″ 4K OLED Reference Monitor

TVLogic LEM-271P 26.5″ 4K OLED Reference Monitor

The TVLogic LEM-271P is a 26.5 inch 4K OLED reference monitor for HDR grading, color-critical review and broadcast quality control. The self-emissive 3840 x 2160 panel delivers true black with a 1,500,000:1 contrast ratio, 1000 cd/m2 peak luminance, 10-bit color and 99% DCI-P3 coverage, with a 178 degree viewing angle.

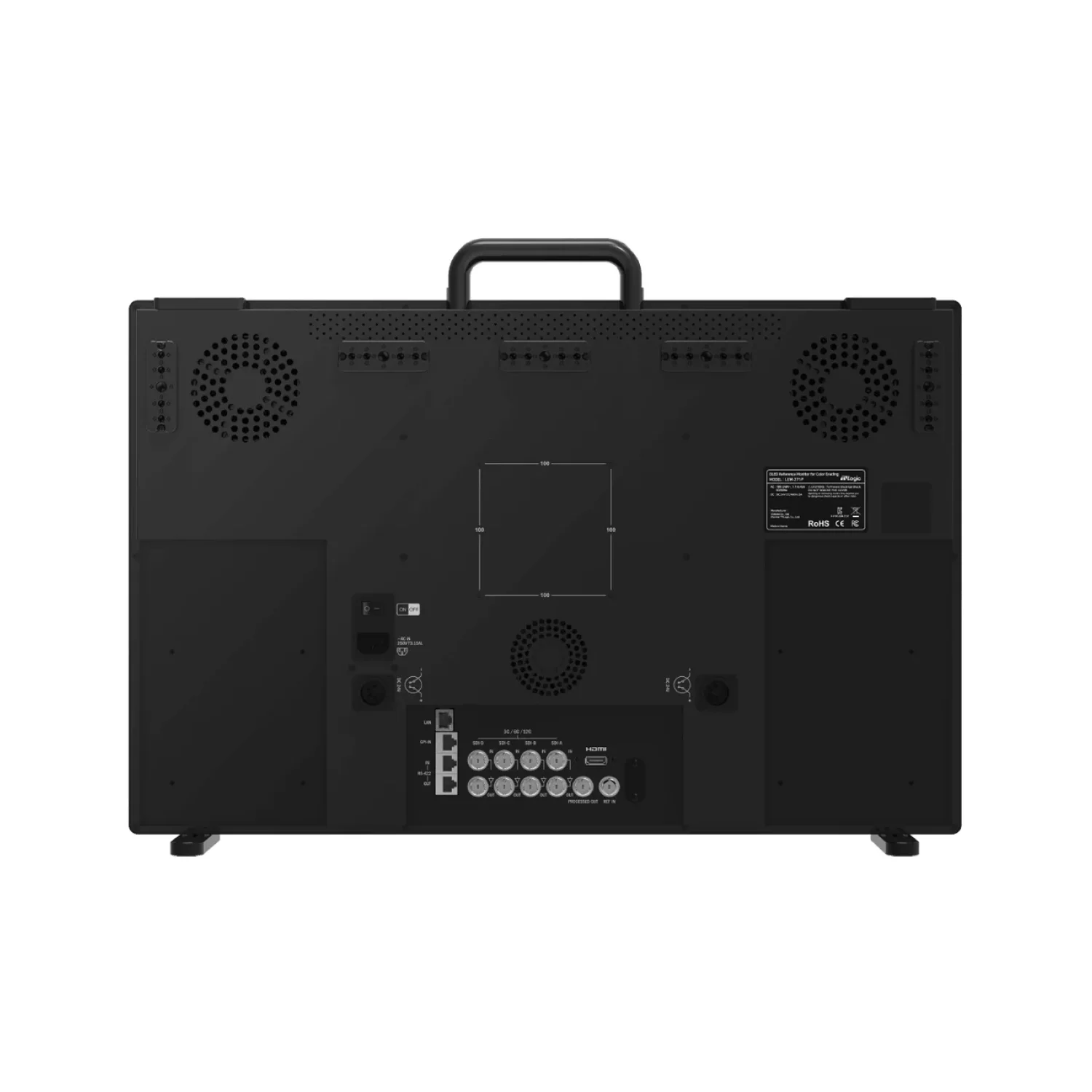

Four 12G/6G/3G/HD/SD-SDI inputs (A/B/C/D) each have a matching output, and the monitor can show all four in 12G-SDI quad-view. An HDMI 2.0 input, a reference input and a processed output complete the video I/O. For facility integration there is LAN for remote control and firmware updates, GPI, and two RS-422 ports supporting the TVLogic or TSL protocol, with dynamic UMD and tally.

HDR monitoring covers PQ and HLG, with custom 3D LUT import, automatic SDI payload ID detection, waveform, vectorscope, histogram, audio level meters, closed captions (CC-608, CC-708) in multiple languages, false color, focus assist, markers, timecode, scan and anamorphic modes. It runs from AC 100 to 240V or DC 24V, and optional dual V-Mount or G-Mount brackets allow battery operation on location. Contact CINEOM Broadcast FZCO for a quote or technical advice on the LEM-271P.

Included in the Box

• AC power cord
• Stand
• Handle
• Cheese plates (x2)

Key Features

• 26.5″ 3840 x 2160 OLED, 1.07 billion colors (10-bit), 178 degree viewing angle
• 1000 cd/m2 peak luminance and 1,500,000:1 contrast ratio
• 99% DCI-P3 coverage with HDR EOTF (PQ, HLG) and custom 3D LUT import
• 4 x 12G-SDI inputs and outputs (A/B/C/D) with 12G-SDI quad-view display
• HDMI 2.0 input, reference input and processed output
• Waveform, vectorscope, histogram, audio level meter, false color, focus assist
• Closed captions (CC-608, CC-708) in multiple languages, dynamic UMD and tally
• LAN, GPI and 2 x RS-422 control (TVLogic or TSL protocol), internal stereo speakers

Best Suitable For / Use Cases

• HDR and SDR color grading suites
• Broadcast master control and quality control
• DIT and on-set reference monitoring with battery power
• Multi-camera review using the four-input quad-view
• Post-production client review

Paired With

• TVLogic V-Mount battery brackets (optional accessory)
• TVLogic G-Mount battery brackets (optional accessory)
• Additional TVLogic cheese plate (optional accessory)
• 12G-SDI cinema cameras, routers and grading systems

FAQs

Is the LEM-271P suitable for HDR grading?

Yes. It supports PQ and HLG HDR EOTFs with 1000 cd/m2 peak luminance, a 1,500,000:1 contrast ratio, 10-bit color and 99% DCI-P3 coverage, and accepts custom 3D LUTs.

Can the LEM-271P show four inputs at once?

Yes. It has four 12G-SDI inputs, each with a matching output, and a 12G-SDI quad-view display mode.

Can the LEM-271P run on batteries?

Yes. Alongside the AC 100 to 240V input it accepts DC 24V, and optional dual V-Mount or G-Mount brackets can be fitted. Power consumption is 85W.

How heavy is the LEM-271P?

It weighs 8.4 kg (18.52 lbs) with the stand.

Where can I buy the TVLogic LEM-271P?

The TVLogic LEM-271P is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact the team for pricing and lead times.
