Konvision MS-U3210M 32″ 4K HDR Mini-LED Surgical Monitor

Konvision MS-U3210M 32″ 4K HDR Mini-LED Surgical Monitor

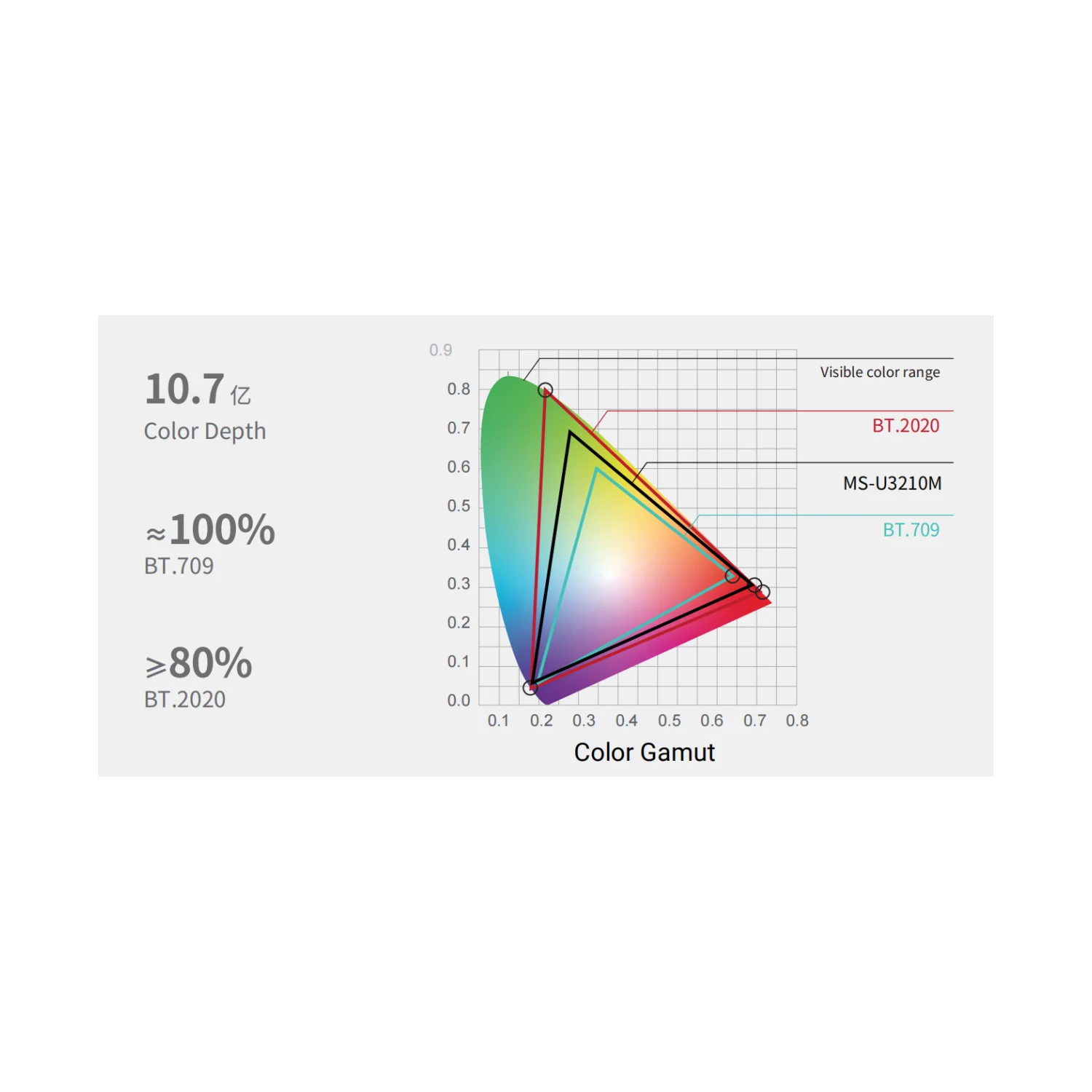

The Konvision MS-U3210M is a 31.5-inch 4K surgical monitor for endoscopy, microsurgery and other high-precision procedures. Its 10-bit Mini-LED panel runs at 3840×2160 with full-array local dimming over 2304 independently controlled zones, reaching 1000 nits and a 1,000,000:1 contrast ratio. It covers the BT.2020 colour gamut with 1.07 billion colours and supports HDR, which helps separate subtle tissue tones under endoscopic lighting.

Compared with the MS-E3210M, the U version adds an SDI SFP+ input for fibre runs from a remote camera control unit or routing system. Inputs are one 12G-SDI, three 3G-SDI, one HDMI 2.0, one single-link DVI-D and the SFP+ cage, and 12G-SDI and HDMI 2.0 outputs pass the picture to a second surgical display in real time. Quad-View shows four sources at once, so the endoscope feed can sit beside patient vital signs.

The monitor provides 180 degree image rotation and left-right mirroring, Konvision Image Plus enhancement with contour, colour and lift modes, 3D LUT colour calibration and anti-reflective scratch-resistant glass with a flat front for cleaning. Power comes from AC 100-240V or DC 24V, and both 5V 2A and 12V 2A DC outputs can feed peripherals. Contact CINEOM Broadcast FZCO for a quote or technical advice on the MS-U3210M.

Key Features

• 31.5″ 3840×2160 10-bit Mini-LED panel with 2304-zone full-array local dimming
• 1000 nits brightness, 1,000,000:1 contrast, BT.2020 gamut, 1.07 billion colours, HDR
• Inputs: 1x 12G-SDI, 3x 3G-SDI, 1x HDMI 2.0, 1x DVI-D, 1x SDI SFP+; outputs: 1x 12G-SDI, 1x HDMI 2.0
• Quad-View display of four sources at once
• 180 degree image rotation and left-right mirroring
• 3D LUT colour calibration
• Anti-reflective, scratch-resistant glass and a flat, easy-to-clean front with touch buttons
• AC 100-240V and DC 24V power, 5V 2A and 12V 2A DC outputs, VESA 100×100 and 200×100 mounting

Best Suitable For / Use Cases

• Laparoscopic and endoscopic surgery
• Microsurgery
• Integrated operating rooms with fibre SDI distribution
• Surgical teaching, recording and observation rooms

Paired With

• 4K endoscopy camera systems with 12G-SDI or HDMI 2.0 output
• SDI SFP+ fibre modules for long cable runs
• A second surgical monitor fed from the 12G-SDI or HDMI output
• VESA 100×100 or 200×100 ceiling or cart mounts

FAQs

What does the SFP+ input add?

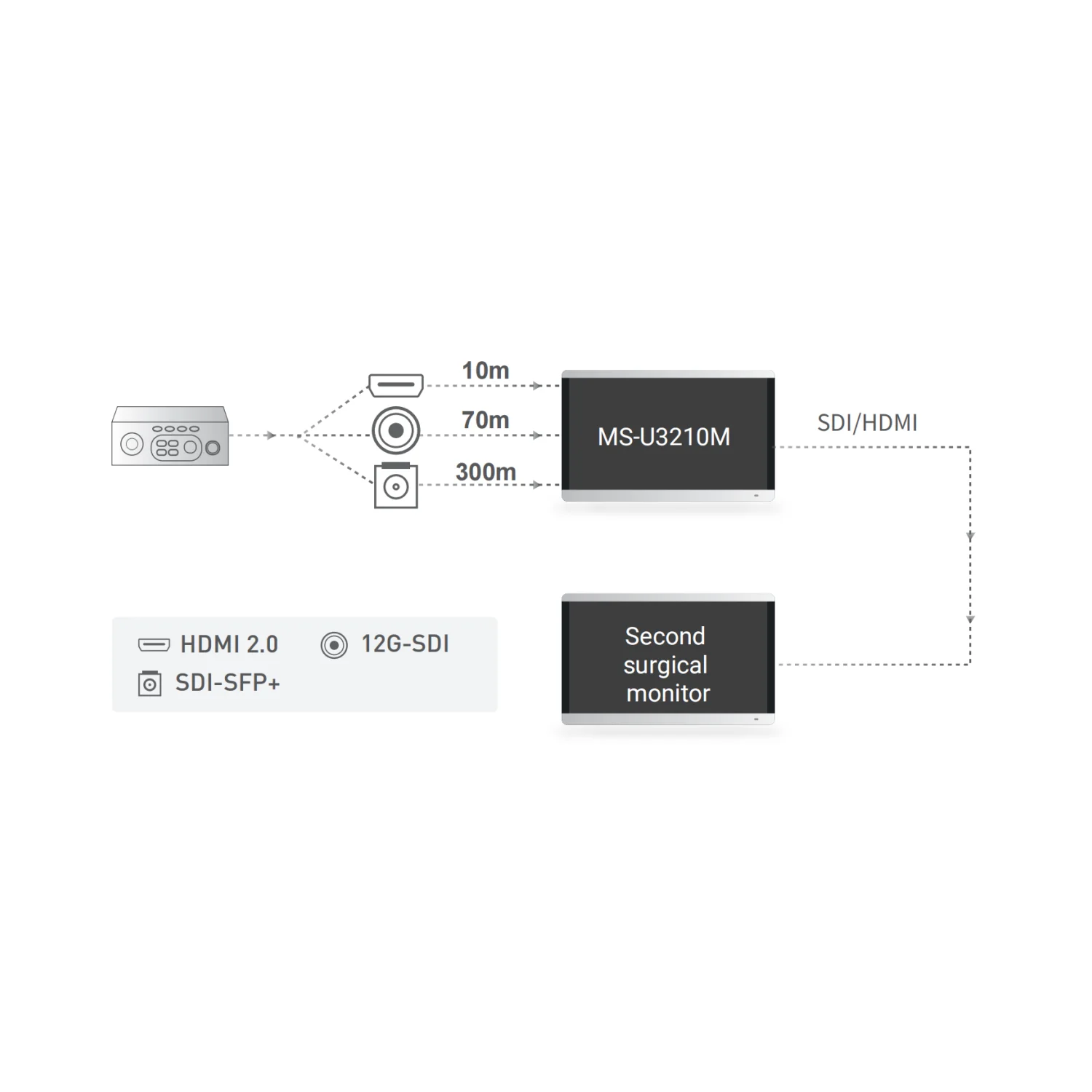

The SDI SFP+ cage accepts a fibre SDI module, so the monitor can take a signal over long fibre runs, where Konvision’s diagram shows up to 300m versus 10m for HDMI and 70m for 12G-SDI coax.

What is the difference between the MS-U3210M and the MS-E3210M?

They share the same 31.5-inch 4K Mini-LED panel. The MS-U3210M adds the SDI SFP+ input, a 5V DC output and 3D LUT calibration, while the MS-E3210M has a built-in recessed interface bay with a cable cover.

Can I rotate or mirror the image?

Yes. The monitor supports 180 degree rotation and left-right mirroring so the view matches the surgeon’s position.

Does it carry medical device certification?

The Konvision product page does not list medical certifications for this model. Contact CINEOM Broadcast FZCO for current regulatory documentation for your market.

Where can I buy the Konvision MS-U3210M?

The MS-U3210M is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact the team for pricing and project support.
