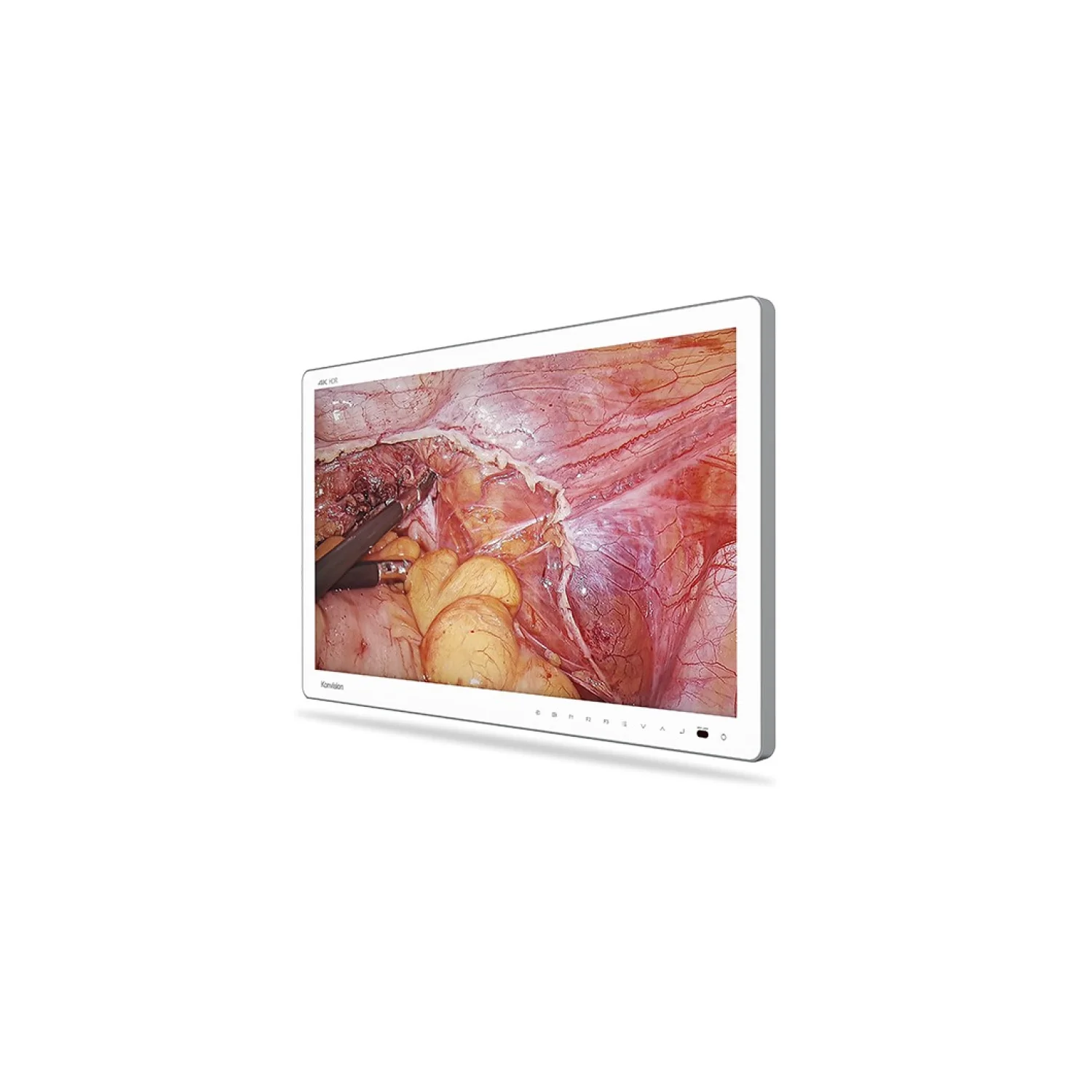

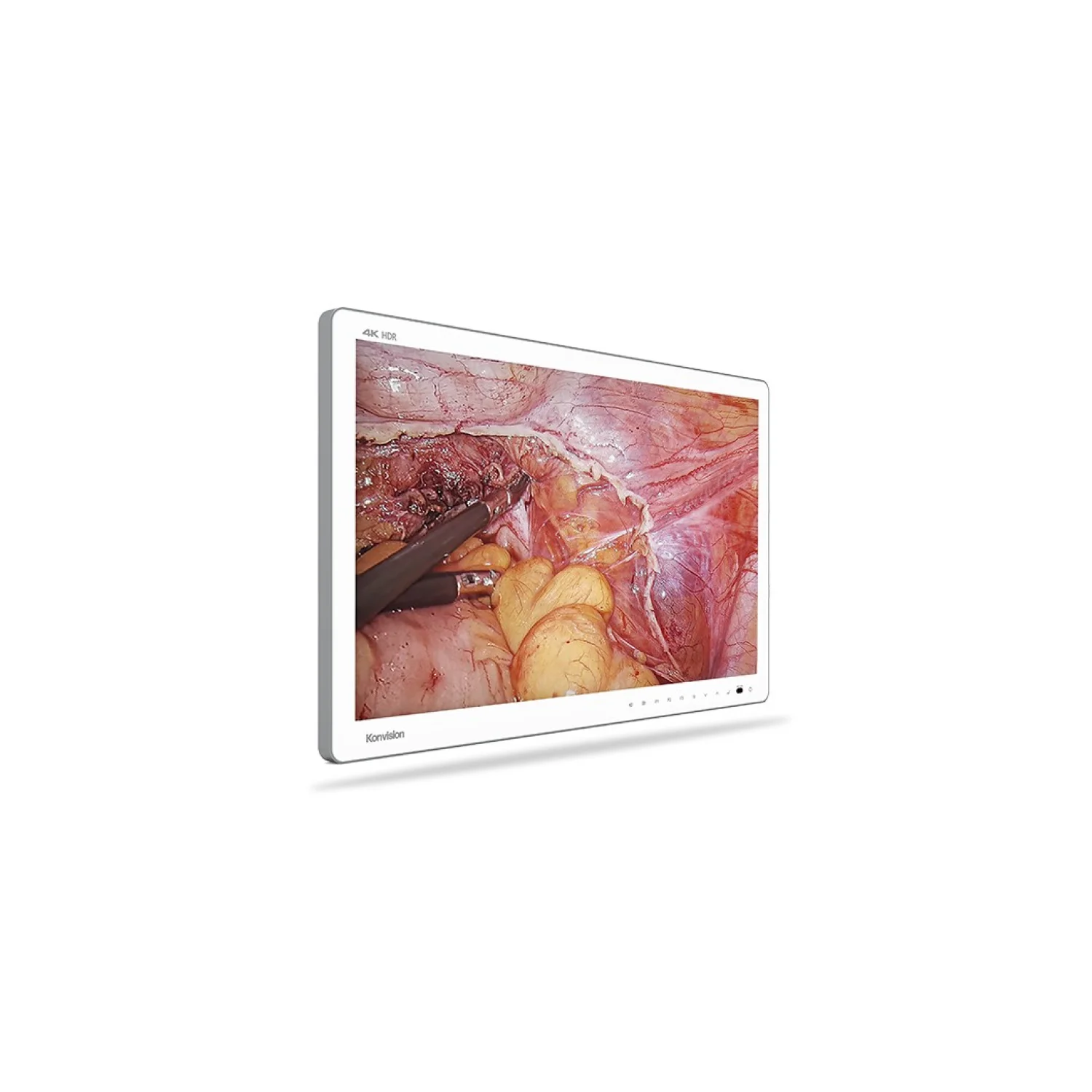

Konvision MS-E2710H 27″ 4K HDR Surgical Monitor

Konvision MS-E2710H 27″ 4K HDR Surgical Monitor

The Konvision MS-E2710H is a 27-inch 4K surgical monitor for endoscopy, microsurgery and other high-precision procedures. It uses a 10-bit IPS LCD panel at 3840×2160 with 800 nits brightness, 178 degree viewing angles and BT.2020 colour gamut coverage with 1.07 billion colours. HDR is supported with both PQ and HLG, so HDR-capable endoscopy cameras can be viewed with their full highlight and shadow range.

Like the 32-inch MS-E3210M, it uses Konvision’s built-in interface design: connectors face downward in a recessed bay with a cable box, keeping cables organised and the housing easy to clean. Inputs are one 12G-SDI, three 3G-SDI, one HDMI 2.0 and one single-link DVI-D. 12G-SDI and HDMI 2.0 outputs share the image with a second surgical monitor in real time, and Quad-View shows four sources together, such as the endoscope picture and patient vital signs.

Image rotation by 180 degrees, left-right mirroring, Konvision Image Plus enhancement with contour, colour and lift modes and 3D LUT colour calibration are built in. The anti-reflective, scratch-resistant glass limits glare under theatre lighting, and the flat front with touch buttons is easy to disinfect. It runs on AC 100-240V or DC 24V and provides a 12V 2A DC output for peripherals. Contact CINEOM Broadcast FZCO for a quote or technical advice on the MS-E2710H.

Key Features

• 27″ 3840×2160 10-bit IPS LCD panel, 800 nits, 178 degree viewing angle
• BT.2020 colour gamut, 1.07 billion colours, HDR with PQ and HLG
• Inputs: 1x 12G-SDI, 3x 3G-SDI, 1x HDMI 2.0, 1x DVI-D; outputs: 1x 12G-SDI, 1x HDMI 2.0
• Downward-facing recessed interfaces with cable box for tidy, hygienic cabling
• Quad-View display and Konvision Image Plus enhancement modes
• 180 degree image rotation, left-right mirroring and 3D LUT colour calibration
• Anti-reflective, scratch-resistant glass and a flat, easy-to-clean front
• AC 100-240V and DC 24V power, 12V 2A DC output, 95W consumption, VESA 100×100 mount

Best Suitable For / Use Cases

• Laparoscopic and endoscopic surgery
• Microsurgery and ENT procedures
• Secondary or assistant displays in the operating room
• Surgical teaching and observation rooms

Paired With

• 4K endoscopy camera systems with 12G-SDI or HDMI 2.0 output
• Konvision MS-E3210M as a larger primary display
• A second surgical monitor fed from the 12G-SDI or HDMI output
• VESA 100×100 ceiling or cart mounts

FAQs

What panel does the MS-E2710H use?

A 27-inch 10-bit IPS LCD panel at 3840×2160 with 800 nits brightness, 1000:1 contrast and BT.2020 colour gamut coverage.

Which HDR formats does it support?

Konvision states it is compatible with HDR based on PQ and HLG.

How is it different from the MS-E3210M?

The MS-E3210M is a 31.5-inch Mini-LED model with local dimming, 1000 nits and 1,000,000:1 contrast. The MS-E2710H uses a 27-inch IPS panel at 800 nits and adds 3D LUT colour calibration, in a lighter 11kg housing.

Does it carry medical device certification?

The Konvision product page does not list medical certifications for this model. Contact CINEOM Broadcast FZCO for current regulatory documentation for your market.

Where can I buy the Konvision MS-E2710H?

The MS-E2710H is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact the team for pricing and project support.
