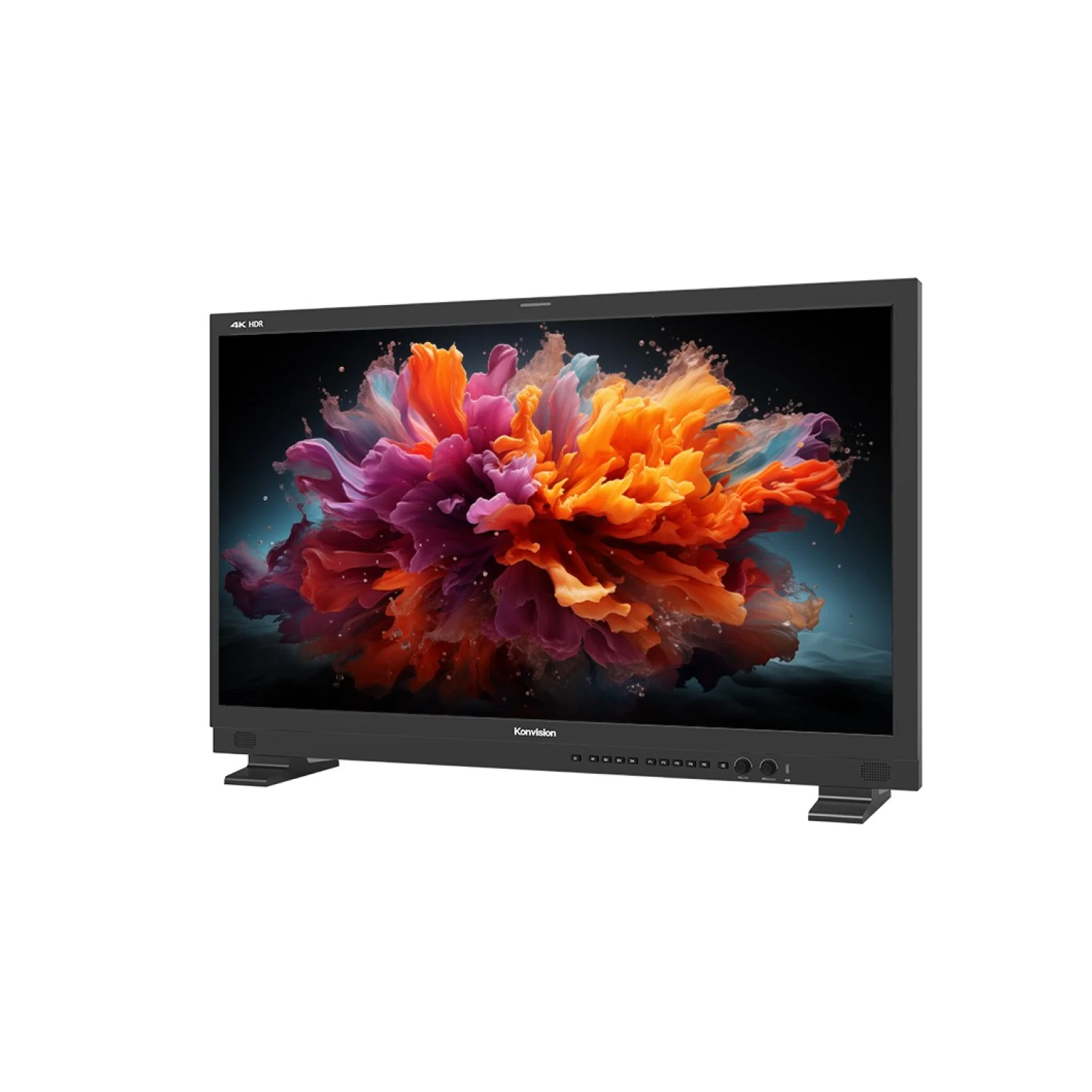

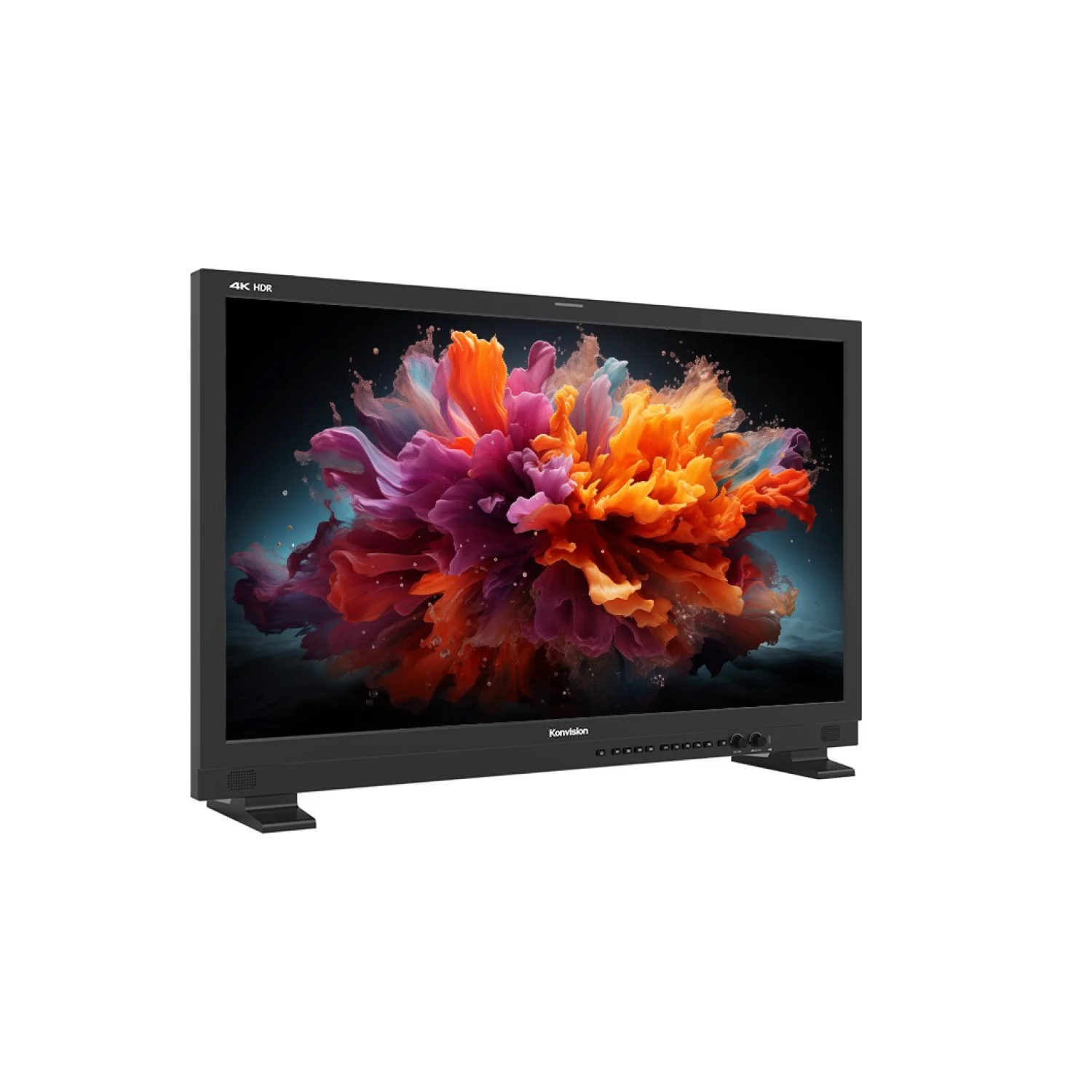

Konvision KXM-3210S 32″ 4K HDR QD-OLED Mastering Monitor

Konvision KXM-3210S 32″ 4K HDR QD-OLED Mastering Monitor

The Konvision KXM-3210S is a 31.5-inch 4K HDR mastering monitor using a self-emissive QD-OLED panel at 3840×2160. Quantum dots control the colour of each sub-pixel, giving 1000 nits peak brightness, a 1,500,000:1 contrast ratio and at least 80% BT.2020 coverage. The 178 degree horizontal and vertical viewing angle keeps colour and brightness consistent when several people watch the same screen, which matters in a grading room or review theatre. Video processing is 12-bit.

Connectivity is built around two 12G-SDI and two 3G-SDI inputs, each with a loop output. 4K arrives either as a single 12G-SDI link or as 4x 3G-SDI quad-link in SQD or 2SI format up to 4K60p. An SFP+ cage accepts fibre SDI, and an HDMI 2.0 input with loop-out can also output SDI or SFP+ sources. Single-link SDI handles 4K to HD down-conversion and HDR to SDR conversion with NBCU and CMG LUT support.

The monitor covers Rec.709, EBU, DCI-P3, DCI-P3 D65 and Rec.2020, Gamma 2.0, 2.2, 2.4 and 2.6, HLG and ST2084 PQ with soft roll-off, and reads VPID and Payload ID to set colour space and EOTF automatically. Eight custom 3D LUTs load over USB or network and can be applied to the output feed. Scopes include waveform, vector, histogram, CIE chromaticity and colour volume, plus an HDR area display. Contact CINEOM Broadcast FZCO for a quote or technical advice on the KXM-3210S.

Included in the Box

• Power cord
• Desktop stand

Key Features

• 31.5″ 3840×2160 QD-OLED panel, 1.07 billion colours, 178 degree H/V viewing angle
• 1000 nits peak brightness, 1,500,000:1 contrast ratio, at least 80% BT.2020
• 2x 12G-SDI and 2x 3G-SDI inputs with loop outputs, 4K single-link and quad-link (SQD/2SI) up to 4K60p
• 1x SFP+ fibre SDI input and 1x HDMI 2.0 input with loop-out
• Tetrahedral 3D LUT calibration for ColourSpace and Calman, with K10-A, CR100 and common colorimeters
• Built-in camera Log conversions and up to 8 custom 3D LUTs via USB or network, with LUT output
• Quad-View with mixed sources and frame rates, independent colour space and EOTF per window
• 4K HDR to HD SDR down-conversion, HDR area display, false colour, zebra, focus assist, 608/708 closed captions

Best Suitable For / Use Cases

• HDR mastering and colour grading
• UHD and HD live production control rooms
• Post-production review and client monitoring
• On-set DIT and filming with LUT output

Paired With

• Calibration probes such as Konvision K10-A or CR100 with ColourSpace or Calman
• 4K cameras and switchers with 12G-SDI or quad-link 3G-SDI outputs
• SDI SFP+ fibre modules
• VESA 100×100 or 200×200 mounts

FAQs

What is the difference between the KXM-3210S and the KXM-2720S?

The KXM-3210S has a larger 31.5-inch QD-OLED panel and focuses on 4K, with 2x 12G-SDI and 2x 3G-SDI inputs. The 27-inch KXM-2720S has four 12G-SDI inputs for 8K quad-link signals.

How does it accept 4K signals?

Through a single 12G-SDI link, or as 4x 3G-SDI quad-link in SQD or 2SI format up to 4K60p. HDMI 2.0 and SFP+ fibre SDI inputs are also available.

How many custom LUTs can it store?

Konvision states that eight custom 3D LUTs can be loaded and saved through the USB or network port, and a custom LUT can be applied to the output signal.

What power options does it have?

Konvision lists both 12V DC and AC 100-240V 50/60Hz power, with power consumption of 160W.

Where can I buy the Konvision KXM-3210S?

The KXM-3210S is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Get in touch for pricing and lead times.
