Gecko-Cam LPL Mount GECKO PRO for Sony Venice, LDS Version

Gecko-Cam LPL Mount GECKO PRO for Sony Venice, LDS Version

The Gecko-Cam LPL Mount GECKO PRO for Sony Venice (part GEP.11000.0) replaces the original mount on Sony Venice cameras so native LPL lenses can be used directly on the camera. This is the LDS version: it carries an LPL lens data connection so LDS lens data is fed straight to the camera for metadata and on-screen lens information.

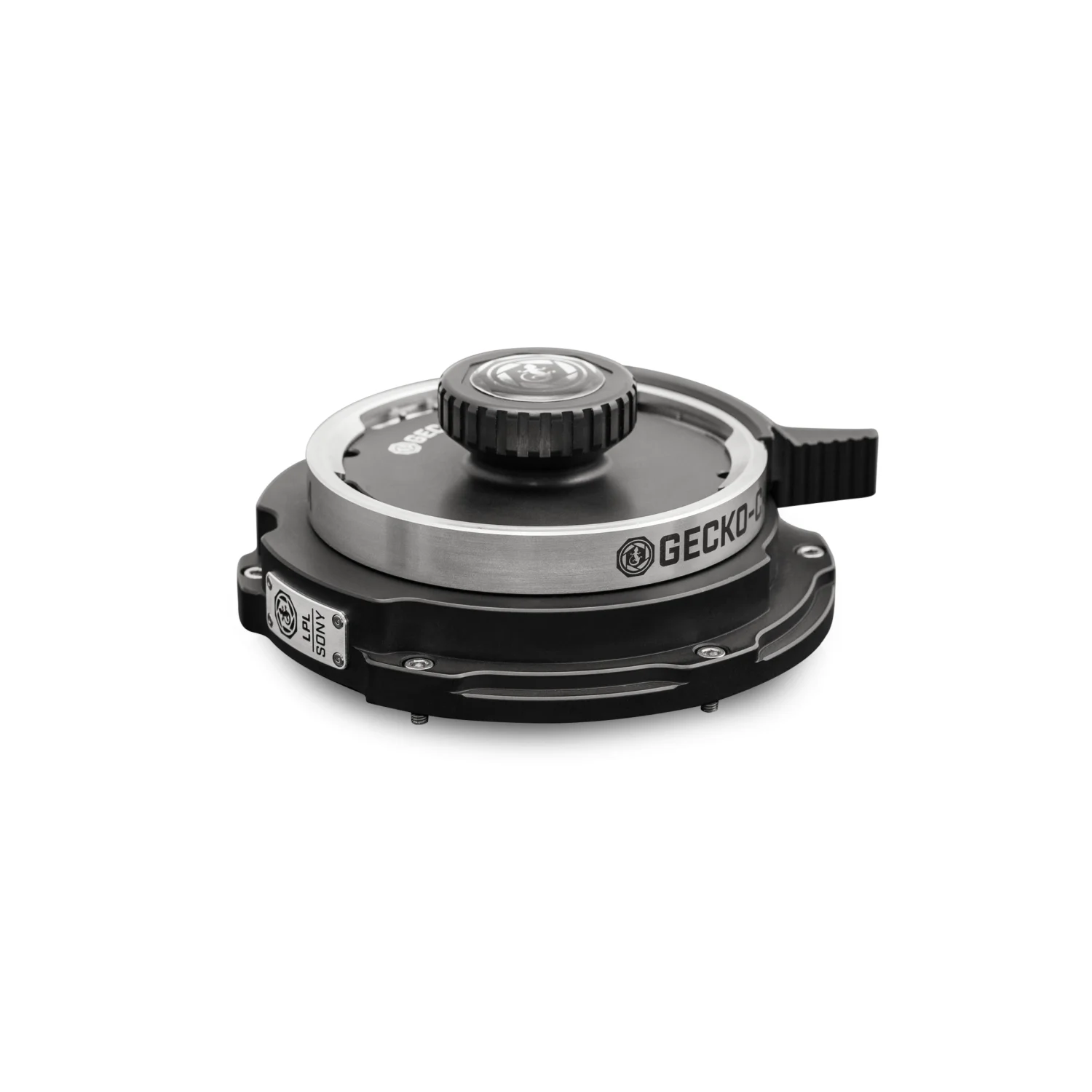

The body is machined from 7075 aircraft grade aluminium, with a stainless steel LPL flange and stainless steel screws, chosen by Gecko-Cam to keep the effect of pressure and temperature changes to a minimum. Each mount is factory adjusted within 0.005 mm tolerance in parallelity and depth, and the design is improved for telecentric lenses to eliminate vignetting. After fitting the mount to the camera, Gecko-Cam recommends measuring and calibrating the flange depth. Adjustment is done by adding or removing colour coded shims under the LPL flange, which is held by six TX8 screws.

Combined with the Gecko-Cam LPL-PL Adapter, which is also offered as a set, the LPL mount can stay on the Venice while PL lenses are used, without readjusting the mount. Contact CINEOM Broadcast FZCO for a quote or technical advice on converting your Sony Venice to LPL.

Key Features

• Native LPL mount replacement for Sony Venice cameras
• 7075 aircraft grade aluminium construction
• Stainless steel LPL flange and stainless steel screws
• Precision adjustment within 5 microns (0.005 mm) in parallelity and depth
• LPL lens data connection for LDS lens data to the camera
• Flange depth set with colour coded shims under a flange held by six TX8 screws
• Improved for telecentric lenses to eliminate vignetting

Best Suitable For / Use Cases

• Running native LPL cinema lenses on Sony Venice cameras
• Rental houses standardising Venice bodies on the LPL mount
• Productions that need LDS lens metadata recorded in camera
• Mixed LPL and PL lens packages when combined with the Gecko-Cam LPL-PL Adapter

Paired With

• Sony Venice cinema cameras
• Gecko-Cam LPL-PL Adapter
• LPL mount cinema prime and zoom lenses with LDS data contacts
• Flange depth measuring and lens test equipment for calibration after fitting

FAQs

Which camera is this mount for?

It is designed to replace the original mount on Sony Venice cameras, letting native LPL lenses be used on the camera.

Does it pass lens data to the camera?

Yes. This is the LDS version with an LPL lens data connection, so LDS lens data is fed directly to the camera.

Does the flange depth need to be checked after installation?

Gecko-Cam suggests measuring and calibrating the flange depth once the mount is attached to the camera. Depth is adjusted by adding or removing colour coded shims under the LPL flange.

Can I use PL lenses with this mount?

Yes, with the Gecko-Cam LPL-PL Adapter. The LPL mount can remain on the camera while PL lenses are used, without readjusting it.

Where can I buy the Gecko-Cam LPL Mount for Sony Venice?

It is available through CINEOM Broadcast FZCO, serving the Middle East, Africa, Asia and Europe from Dubai. Contact the team for pricing, lead times and technical advice.
